Step1: Product

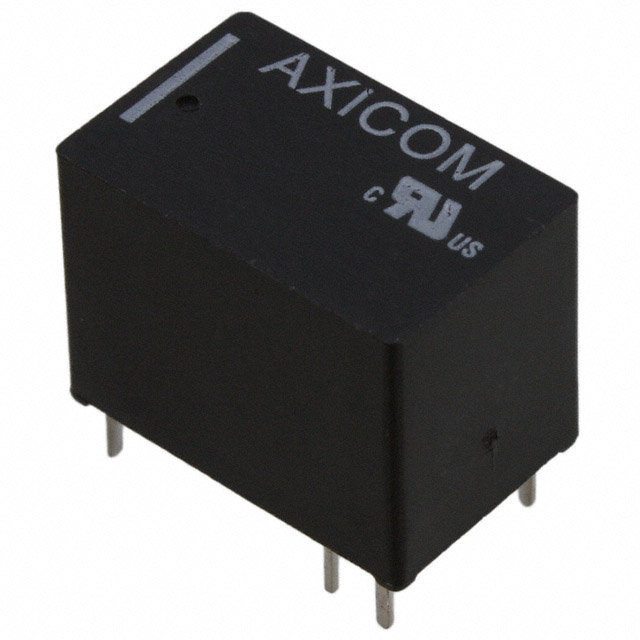

TE Connectivity V23101D106A201
Image shown is a representation only
Manufacturer
Manufacturer No
V23101D106A201
Packaging
Tube
Description
Power/Signal Relay, 2 Form C, SP
Detailed Description
General Purpose Relay SPDT (1 Form C) Through Hole
DataSheet
Series
V23101, AXICOM
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Part Status
Active
Coil Current
17.1 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity
Operate Time
7 ms
Release Time
5 ms
Mounting Type
Through Hole
Coil Resistance
700 Ohms
Contact Material
Silver Palladium (AgPd), Gold (Au)
Switching Voltage
125VAC, 120VDC - Max
Termination Style
PC Pin
Base Product Number
V23101D
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
1.25 A
| Attribute | Value |
|---|---|
| Series | V23101, AXICOM |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 17.1 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 700 Ohms |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Switching Voltage | 125VAC, 120VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | V23101D |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 1.25 A |
