Step1: Product

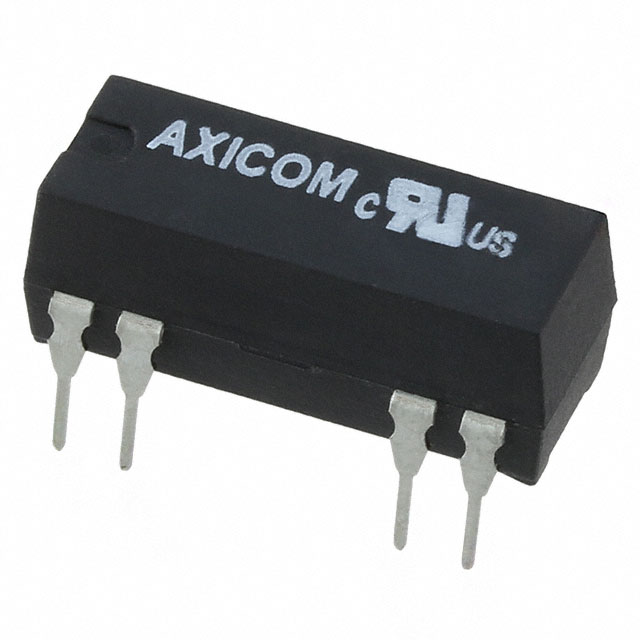

TE Connectivity Potter & Brumfield Relays V23100V4305C011
Image shown is a representation only
Manufacturer
Manufacturer No
V23100V4305C011
Quantity
7
Availability
In Stock
Packaging
Tube
Description
RELAY REED SPDT 250MA 5V
Detailed Description
Reed Relay SPDT (1 Form C) 5VDC Coil Through Hole
DataSheet
Series
V23100-V4, AXICOM
Features
Diode, Electrostatic Shield
Coil Type
Non Latching
Packaging
Tube
Part Status
Obsolete
Coil Current
25 mA
Coil Voltage
5VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
1.1 ms
Release Time
1.6 ms
Mounting Type
Through Hole
Coil Resistance
200 Ohms
Contact Material
Ruthenium (Ru)
Switching Voltage
175VDC - Max
Termination Style
PC Pin
Base Product Number
V23100
Must Operate Voltage
3.5 VDC
Must Release Voltage
0.75 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
250 mA
| Attribute | Value |
|---|---|
| Series | V23100-V4, AXICOM |
| Features | Diode, Electrostatic Shield |
| Coil Type | Non Latching |
| Packaging | Tube |
| Part Status | Obsolete |
| Coil Current | 25 mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 1.1 ms |
| Release Time | 1.6 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 200 Ohms |
| Contact Material | Ruthenium (Ru) |
| Switching Voltage | 175VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | V23100 |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.75 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 250 mA |
