Step1: Product
TE Connectivity 8-1617351-4

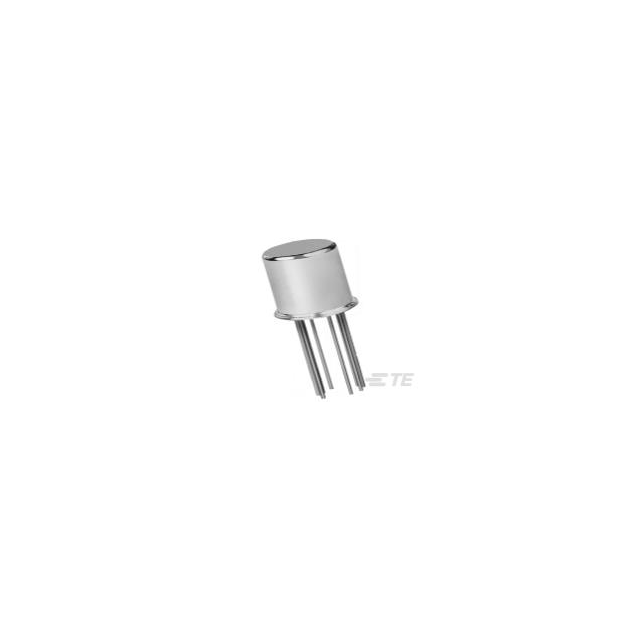

Image shown is a representation only
Manufacturer
Manufacturer No
8-1617351-4
Packaging
Box
Description
RELAY GEN PURPOSE SPDT 1A 18V
Detailed Description
General Purpose Relay SPDT (1 Form C) Through Hole
DataSheet
Series
1MSCDD
Features
Diode
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Hermetically
Coil Current
7.8 mA
Coil Voltage
18VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity
Operate Time
2 ms
Release Time
4 ms
Mounting Type
Through Hole
Coil Resistance
2.3 kOhms
Contact Material
Silver Palladium (AgPd), Gold (Au)
Switching Voltage
115VAC, 28VDC - Max
Termination Style
PC Pin
Base Product Number
1617351
Must Operate Voltage
8 VDC
Must Release Voltage
1.1 VDC
Operating Temperature
-65°C ~ 125°C
Contact Rating (Current)
1 A
| Attribute | Value |
|---|---|
| Series | 1MSCDD |
| Features | Diode |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Hermetically |
| Coil Current | 7.8 mA |
| Coil Voltage | 18VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity |
| Operate Time | 2 ms |
| Release Time | 4 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 2.3 kOhms |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Switching Voltage | 115VAC, 28VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | 1617351 |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 1.1 VDC |
| Operating Temperature | -65°C ~ 125°C |
| Contact Rating (Current) | 1 A |
