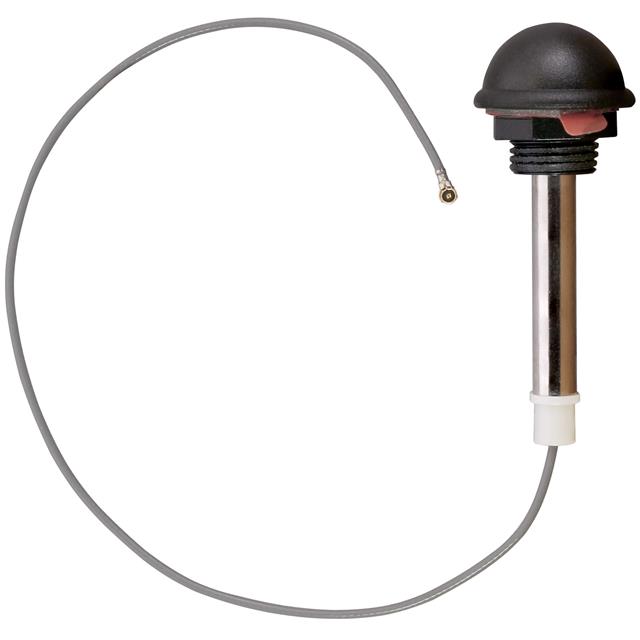

TE Connectivity Linx ANT-DB1-WRT-UFL-150
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-DB1-WRT-UFL-150
Packaging
Bag
Description
RF ANT 2.4/5GHZ DOME UFL -150
Detailed Description
RF ANTENNA Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ Dome U.FL (UMCC), I-PEX MHF1 Panel Mount
DataSheet
Gain
3.2dBi, 6.8dBi, 7dBi
VSWR
1.9, 3.7, 4
Series
WRT
Features
Cable - 150mm
Packaging
Bag
Part Status
Active
Power - Max
5 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Dome
Applications
Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™
Height (Max)
0.394" (10.00mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Panel Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, General ISM, WiFi
Frequency (Center/Band)
2.4425GHz, 5.5GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 3.2dBi, 6.8dBi, 7dBi |
| VSWR | 1.9, 3.7, 4 |
| Series | WRT |
| Features | Cable - 150mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Dome |
| Applications | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
| Height (Max) | 0.394" (10.00mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Panel Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Frequency (Center/Band) | 2.4425GHz, 5.5GHz, 6.525GHz |
