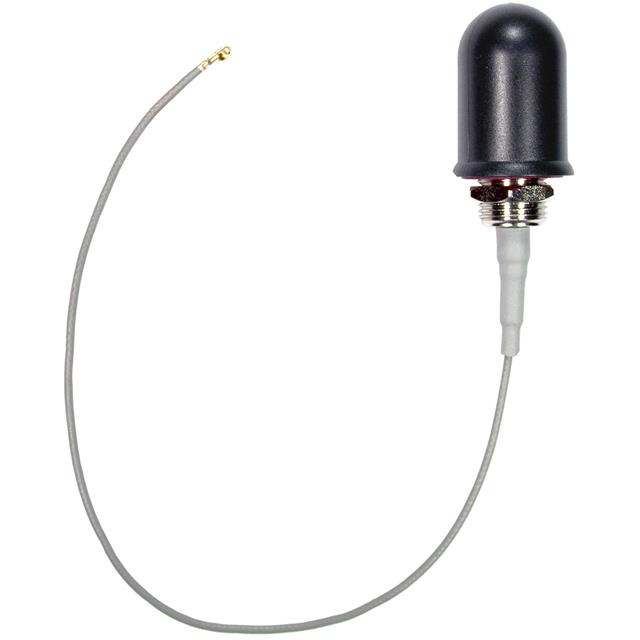

TE Connectivity Linx ANT-DB1-WRT-MON-MHF3
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-DB1-WRT-MON-MHF3
Packaging
Bag
Description
RF ANT 2.5/5GHZ PNL MNT MHF3
Detailed Description
RF ANTENNA 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ Panel I-PEX MHF3 Panel Mount
DataSheet
Gain
2.1dBi, 2.6dBi
VSWR
2.2, 10.8
Series
DB1-WRT-MON
Features
Cable - 216mm
Packaging
Bag
Part Status
Active
Power - Max
5 W
Termination
I-PEX MHF3
Antenna Type
Panel
Applications
802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™
Height (Max)
1.063" (27.00mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Panel Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz
Number of Bands
2
RF Family/Standard
802.15.4, Bluetooth, General ISM, WiFi
Base Product Number
ANT-DB1
Frequency (Center/Band)
2.45GHz, 5.5225GHz
| Attribute | Value |
|---|---|
| Gain | 2.1dBi, 2.6dBi |
| VSWR | 2.2, 10.8 |
| Series | DB1-WRT-MON |
| Features | Cable - 216mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | I-PEX MHF3 |
| Antenna Type | Panel |
| Applications | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
| Height (Max) | 1.063" (27.00mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Panel Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Base Product Number | ANT-DB1 |
| Frequency (Center/Band) | 2.45GHz, 5.5225GHz |
