Step1: Product

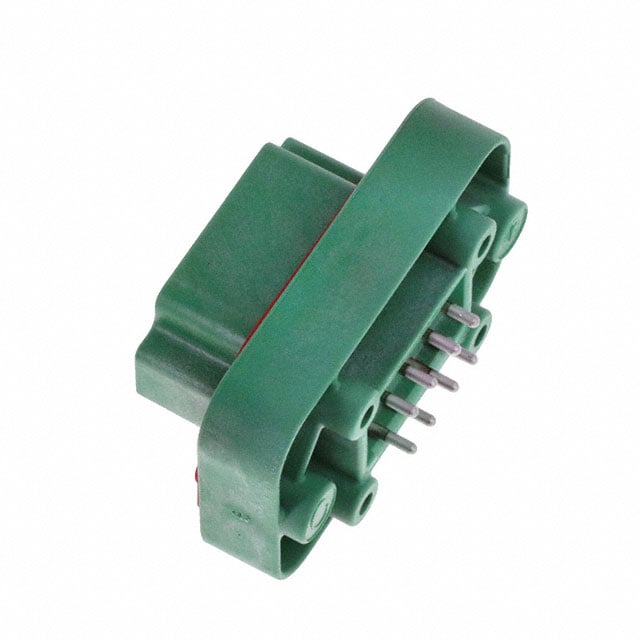

TE Connectivity Deutsch Connectors DT15-08PC
Image shown is a representation only
Manufacturer
Manufacturer No
DT15-08PC
Packaging
Bulk
Description
CONN HEADER VERT 8POS
Detailed Description
Connector Header Panel Mount, Through Hole 8 position
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
DT
Features
Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Voltage Rating
250VDC
Insulation Color
Green
Insulation Height
1.185" (30.10mm)
Ingress Protection
IP68/IP6K9K
Base Product Number
DT15
Insulation Material
Plastic
Number of Positions
8
Row Spacing - Mating
0.360" (9.14mm)
Contact Length - Post
0.122" (3.10mm)
Operating Temperature
-55°C ~ 125°C
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | DT |
| Features | Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Voltage Rating | 250VDC |
| Insulation Color | Green |
| Insulation Height | 1.185" (30.10mm) |
| Ingress Protection | IP68/IP6K9K |
| Base Product Number | DT15 |
| Insulation Material | Plastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.360" (9.14mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions Loaded | All |
