Step1: Product

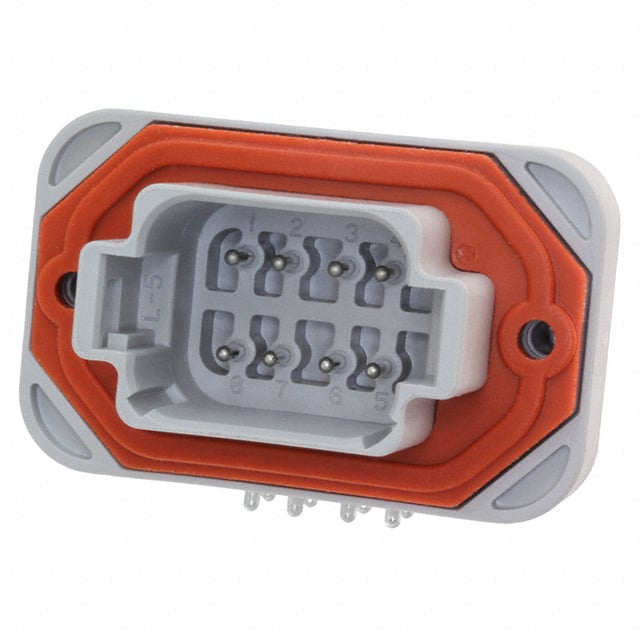

TE Connectivity Deutsch Connectors DT13-08PA
Image shown is a representation only
Manufacturer
Manufacturer No
DT13-08PA
Quantity
2
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 8POS
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 8 position
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
DT
Features
Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Voltage Rating
250VDC
Insulation Color
Gray
Base Product Number
DT13
Insulation Material
Plastic
Number of Positions
8
Row Spacing - Mating
0.250" (6.35mm)
Contact Length - Post
0.122" (3.10mm)
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Nickel
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | DT |
| Features | Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Voltage Rating | 250VDC |
| Insulation Color | Gray |
| Base Product Number | DT13 |
| Insulation Material | Plastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Nickel |
| Number of Positions Loaded | All |
