Step1: Product
TE Connectivity Deutsch Connectors DRC13-40PA

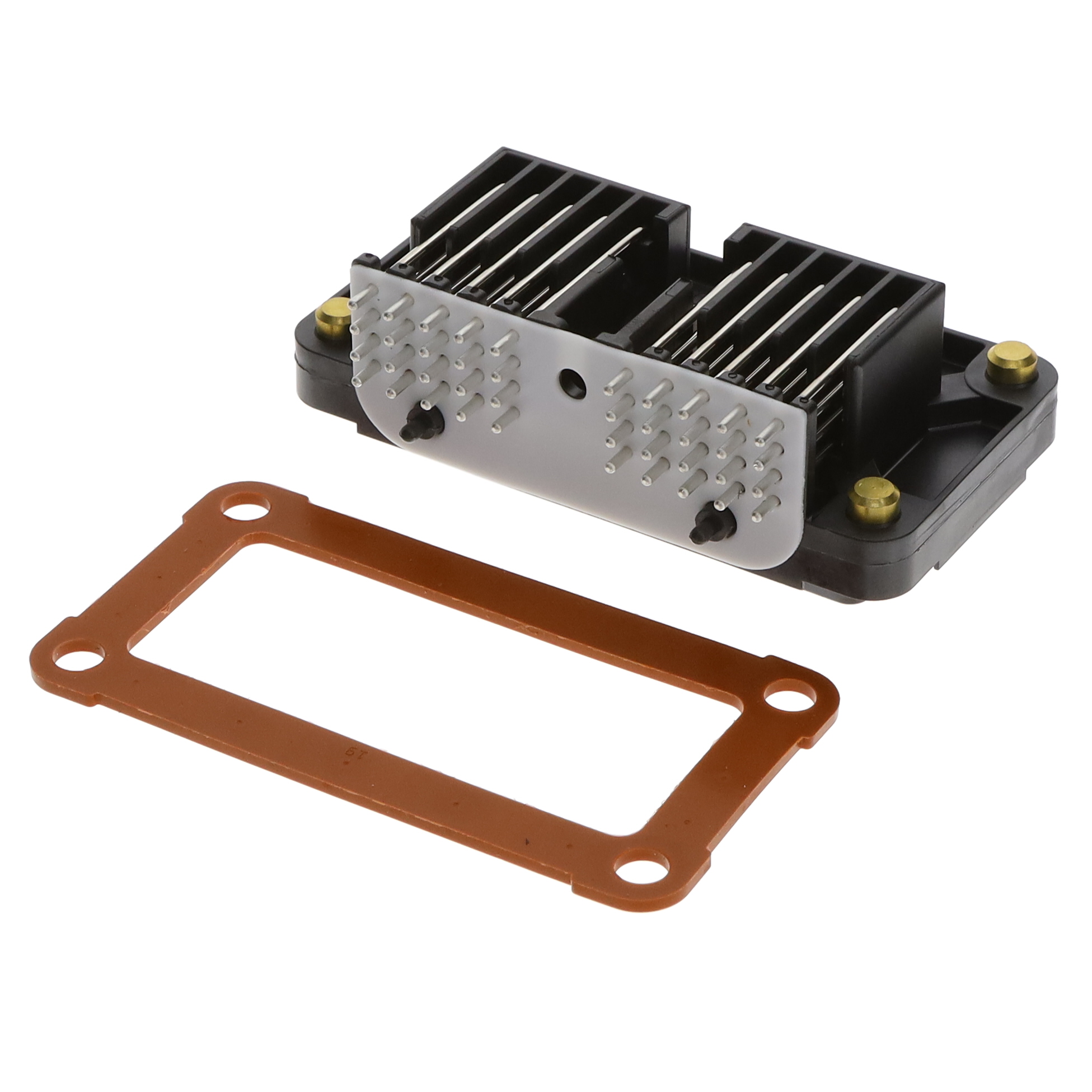

Image shown is a representation only
Manufacturer
Manufacturer No
DRC13-40PA
Packaging
Bulk
Description
40P RECP ASM
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 40 position 0.215" (5.46mm)
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Board or Cable
Series
DRC
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
4
Pitch - Mating
0.215" (5.46mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
Black
Insulation Height
1.985" (50.42mm)
Base Product Number
DRC13
Insulation Material
Plastic
Number of Positions
40
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Board or Cable |
| Series | DRC |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 4 |
| Pitch - Mating | 0.215" (5.46mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 1.985" (50.42mm) |
| Base Product Number | DRC13 |
| Insulation Material | Plastic |
| Number of Positions | 40 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
