Step1: Product
TE Connectivity Deutsch Connectors 2315627-5

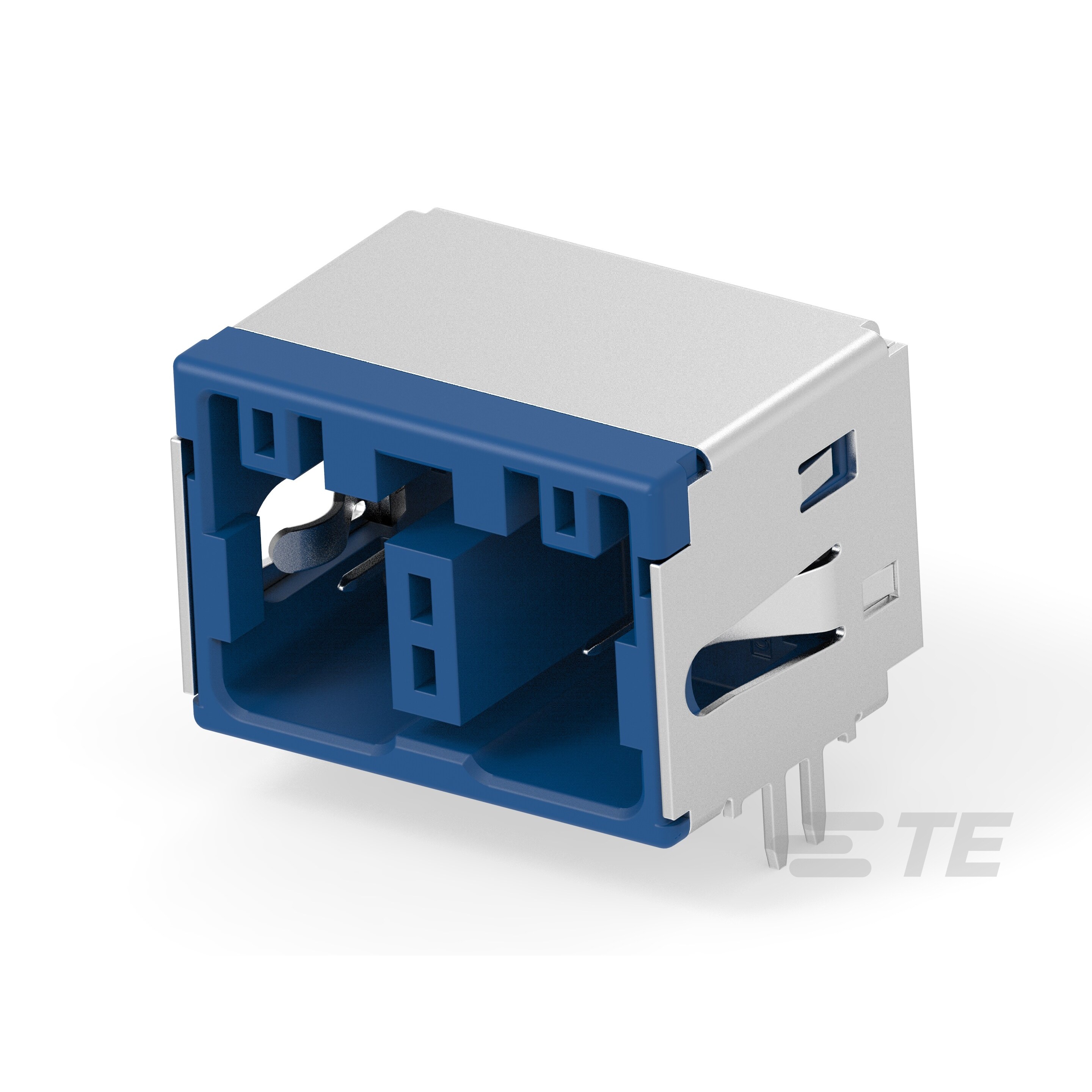

Image shown is a representation only
Manufacturer
Manufacturer No
2315627-5
Packaging
Bulk
Description
4POS,0.50,HDR ASSY,180DEG,COD E,
Detailed Description
Connector Header Surface Mount 4 position 0.079" (2.00mm)
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
HSL
Features
Board Guide, Solder Retention
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Tab
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
5V
Contact Material
Brass
Insulation Color
Blue
Insulation Height
0.561" (14.25mm)
Insulation Material
Polyphenylene Sulfide (PPS)
Number of Positions
4
Contact Finish - Post
Tin
Current Rating (Amps)
2.5A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | HSL |
| Features | Board Guide, Solder Retention |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Tab |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 5V |
| Contact Material | Brass |
| Insulation Color | Blue |
| Insulation Height | 0.561" (14.25mm) |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
