Step1: Product

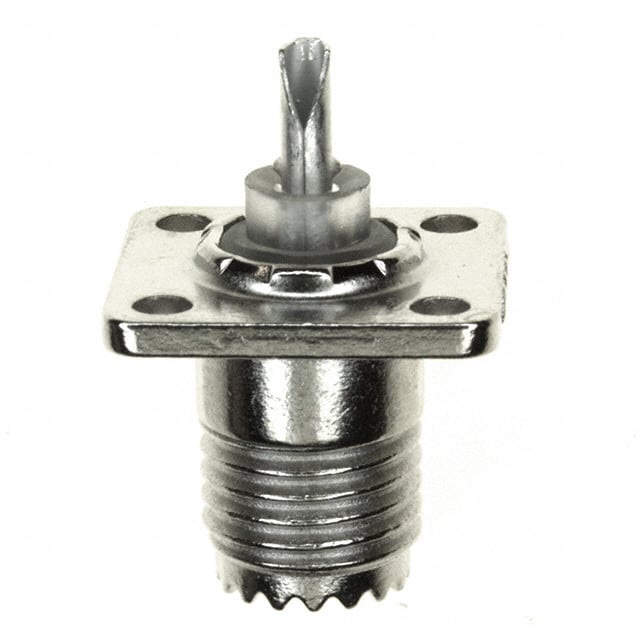

TE Connectivity AMP Connectors 5226601-3
Image shown is a representation only
Manufacturer
Manufacturer No
5226601-3
Packaging
Bulk
Description
CONN MINI UHF RCPT STR SOLDER
Detailed Description
UHF, Mini Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Cup
DataSheet
Mfr
TE Connectivity AMP Connectors
Features
Extended Insulation
Impedance
Non-Constant
Packaging
Bulk
Body Finish
Nickel
Part Status
Obsolete
Body Material
Zinc
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Voltage Rating
335 V
Connector Style
UHF, Mini
Frequency - Max
2 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Base Product Number
5226601
Contact Termination
Solder Cup
Dielectric Material
Polymethylpentene (PMP)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Tin
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Features | Extended Insulation |
| Impedance | Non-Constant |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Obsolete |
| Body Material | Zinc |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 335 V |
| Connector Style | UHF, Mini |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Base Product Number | 5226601 |
| Contact Termination | Solder Cup |
| Dielectric Material | Polymethylpentene (PMP) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze |
