Step1: Product

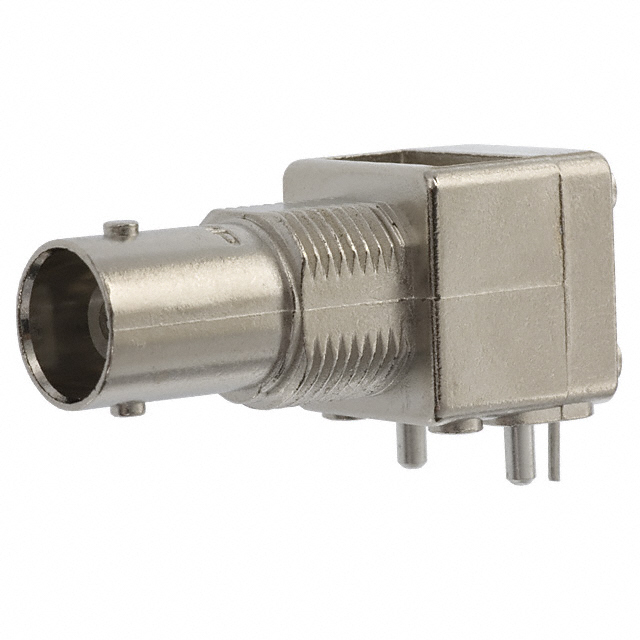

TE Connectivity AMP Connectors 5227661-1
Image shown is a representation only
Manufacturer
Manufacturer No
5227661-1
Quantity
144
Availability
In Stock
Packaging
Tube
Description
CONN BNC JACK R/A 50 OHM PCB
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Tube
Body Finish
Nickel
Part Status
Active
Body Material
Zinc
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
5227661
Contact Termination
Solder
Dielectric Material
Polymethylpentene (PMP)
Operating Temperature
-55°C ~ 85°C
Center Contact Plating
Tin
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Tube |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Zinc |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | 5227661 |
| Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Tin |
| Center Contact Material | Phosphor Bronze |
