Step1: Product

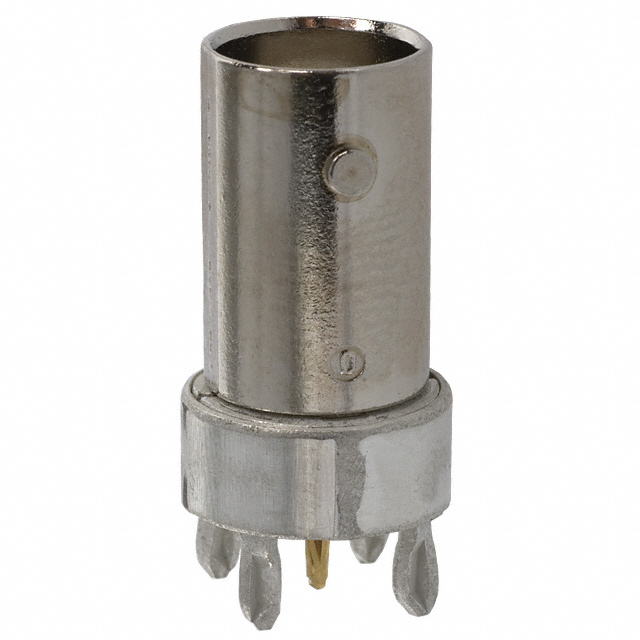

TE Connectivity AMP Connectors 5222006-1
Image shown is a representation only
Manufacturer
Manufacturer No
5222006-1
Quantity
100
Availability
In Stock
Packaging
Bulk
Description
CONN BNC JACK STR 50 OHM PCB
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Through Hole Press-Fit
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Zinc
Housing Color
Silver
Mating Cycles
500
Mounting Type
Through Hole
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Press-Fit
Base Product Number
5222006
Contact Termination
Press-Fit
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Zinc |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Press-Fit |
| Base Product Number | 5222006 |
| Contact Termination | Press-Fit |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
