Step1: Product
TE Connectivity AMP Connectors 5-1814826-3

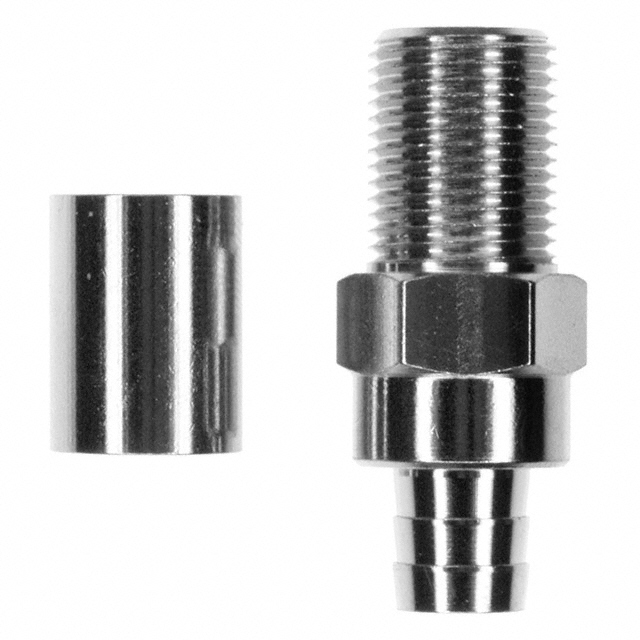

Image shown is a representation only
Manufacturer
Manufacturer No
5-1814826-3
Packaging
Box
Description
CONN F JACK STR 75 OHM
Detailed Description
F Type Connector Jack, Female Socket 75 Ohms Panel Mount
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
75 Ohms
Packaging
Box
Body Finish
Nickel
Cable Group
RG-6
Part Status
Obsolete
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
500 V
Connector Style
F Type
Frequency - Max
2 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Crimp
Base Product Number
1814826
Dielectric Material
Polypropylene (PP)
Operating Temperature
-65°C ~ 85°C
Center Contact Plating
Tin
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 75 Ohms |
| Packaging | Box |
| Body Finish | Nickel |
| Cable Group | RG-6 |
| Part Status | Obsolete |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 500 V |
| Connector Style | F Type |
| Frequency - Max | 2 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Crimp |
| Base Product Number | 1814826 |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | -65°C ~ 85°C |
| Center Contact Plating | Tin |
| Center Contact Material | Brass |
