Step1: Product
TE Connectivity AMP Connectors 2337098-1

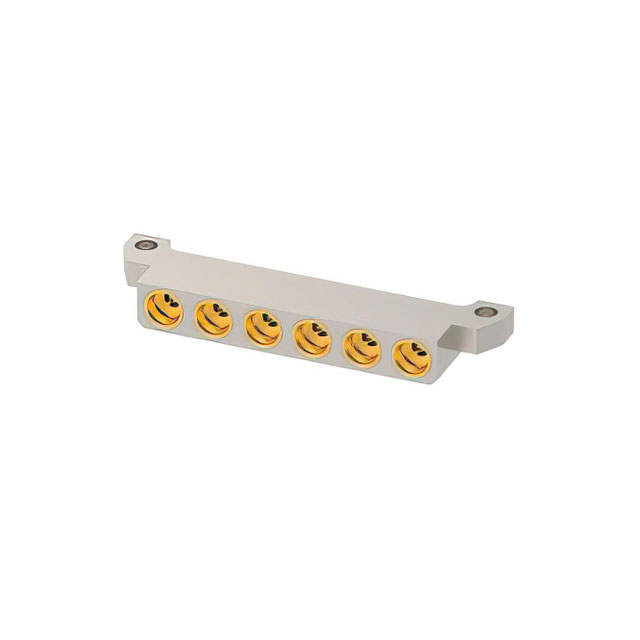

Image shown is a representation only
Manufacturer
Manufacturer No
2337098-1
Packaging
Box
Description
SMPS, EDGE LAUNCH
Detailed Description
SMPS Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Series
NanoRF
Features
Full Detent
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Part Status
Active
Body Material
Copper Alloy
Housing Color
Gold
Mounting Type
Board Edge, End Launch
Connector Type
Plug, Male Pin
Fastening Type
Snap-On
Connector Style
SMPS
Number of Ports
6
Shield Termination
Solder
Base Product Number
2337098
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 120°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | NanoRF |
| Features | Full Detent |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Copper Alloy |
| Housing Color | Gold |
| Mounting Type | Board Edge, End Launch |
| Connector Type | Plug, Male Pin |
| Fastening Type | Snap-On |
| Connector Style | SMPS |
| Number of Ports | 6 |
| Shield Termination | Solder |
| Base Product Number | 2337098 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 120°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
