Step1: Product

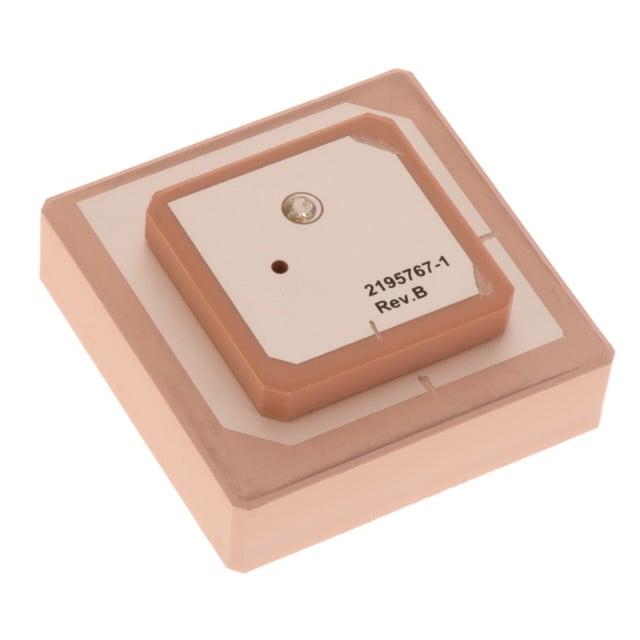

TE Connectivity AMP Connectors 2195767-1
Image shown is a representation only
Manufacturer
Manufacturer No
2195767-1
Packaging
Box
Description
GNSS L1L2 10MM / PADGPS-I4H10G-1
Detailed Description
RF ANTENNA GNSS Ceramic Patch Pin Adhesive
DataSheet
Gain
5dBi, 4.5dBi
Packaging
Box
Part Status
Obsolete
Return Loss
-10dB
Termination
Pin
Antenna Type
Ceramic Patch
Applications
GNSS
Height (Max)
0.585" (14.86mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz
Number of Bands
2
RF Family/Standard
Navigation
Base Product Number
219576
Frequency (Center/Band)
1.227GHz, 1.575GHz
| Attribute | Value |
|---|---|
| Gain | 5dBi, 4.5dBi |
| Packaging | Box |
| Part Status | Obsolete |
| Return Loss | -10dB |
| Termination | Pin |
| Antenna Type | Ceramic Patch |
| Applications | GNSS |
| Height (Max) | 0.585" (14.86mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.224GHz ~ 1.23GHz, 1.572GHz ~ 1.587GHz |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Base Product Number | 219576 |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz |
