TE Connectivity AMP Connectors 2195760-1

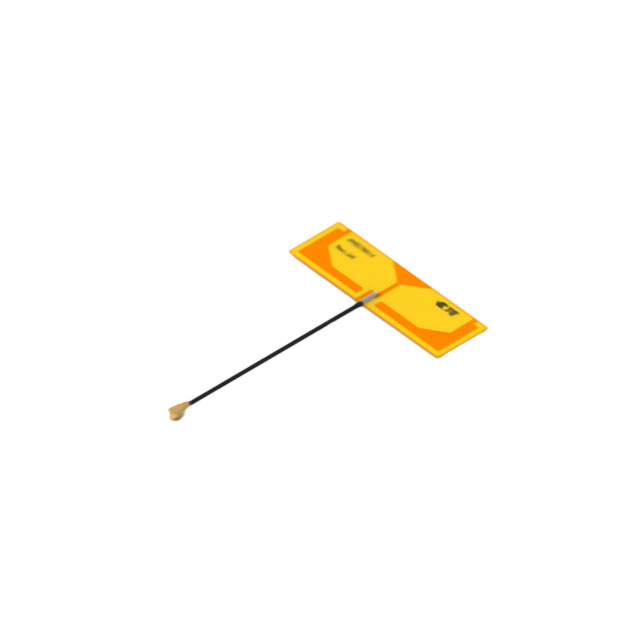

Image shown is a representation only
Manufacturer
Manufacturer No
2195760-1
Packaging
Bag
Description
WIFI DUAL BAND + GNSS, SINGLE FE
Detailed Description
RF ANTENNA Bluetooth, GNSS, Wi-Fi, Zigbee™ PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
1dBi, 3dBi
VSWR
2.5
Features
Cable - 150mm
Packaging
Bag
Part Status
Obsolete
Power - Max
10 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
Bluetooth, GNSS, Wi-Fi, Zigbee™
Height (Max)
0.591" (15.00mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, Navigation, WiFi
Base Product Number
2195760
Frequency (Center/Band)
1.5825GHz, 2.45GHz, 5.5125GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 3dBi |
| VSWR | 2.5 |
| Features | Cable - 150mm |
| Packaging | Bag |
| Part Status | Obsolete |
| Power - Max | 10 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | Bluetooth, GNSS, Wi-Fi, Zigbee™ |
| Height (Max) | 0.591" (15.00mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 1.559GHz ~ 1.606GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, Navigation, WiFi |
| Base Product Number | 2195760 |
| Frequency (Center/Band) | 1.5825GHz, 2.45GHz, 5.5125GHz |
