TE Connectivity AMP Connectors 2195763-1

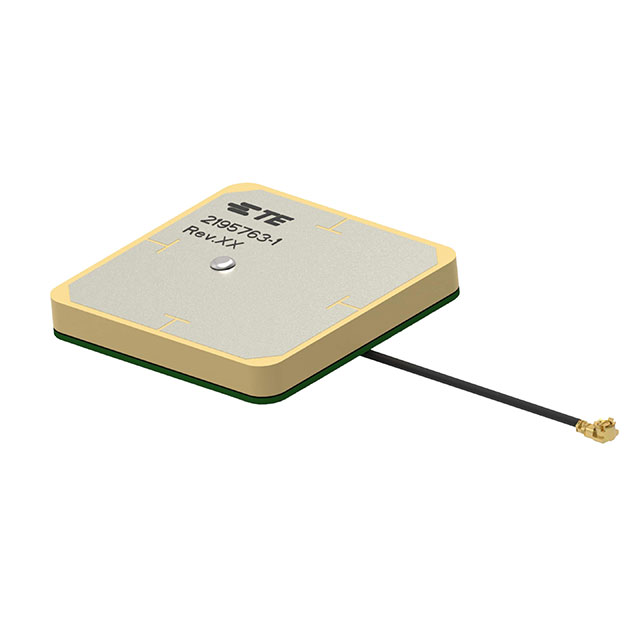

Image shown is a representation only
Manufacturer
Manufacturer No
2195763-1
Packaging
Bag
Description
RF ANT 1.5825GHZ CERAM PATCH ADH
Detailed Description
RF ANTENNA GNSS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
26dBi
VSWR
3
Features
Cable - 70mm, LNA
Packaging
Bag
Part Status
Obsolete
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Ceramic Patch
Applications
GNSS
Height (Max)
0.354" (9.00mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.559GHz ~ 1.606GHz
Number of Bands
1
RF Family/Standard
Navigation
Base Product Number
2195763
Frequency (Center/Band)
1.5825GHz
| Attribute | Value |
|---|---|
| Gain | 26dBi |
| VSWR | 3 |
| Features | Cable - 70mm, LNA |
| Packaging | Bag |
| Part Status | Obsolete |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Ceramic Patch |
| Applications | GNSS |
| Height (Max) | 0.354" (9.00mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.559GHz ~ 1.606GHz |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Base Product Number | 2195763 |
| Frequency (Center/Band) | 1.5825GHz |
