Step1: Product

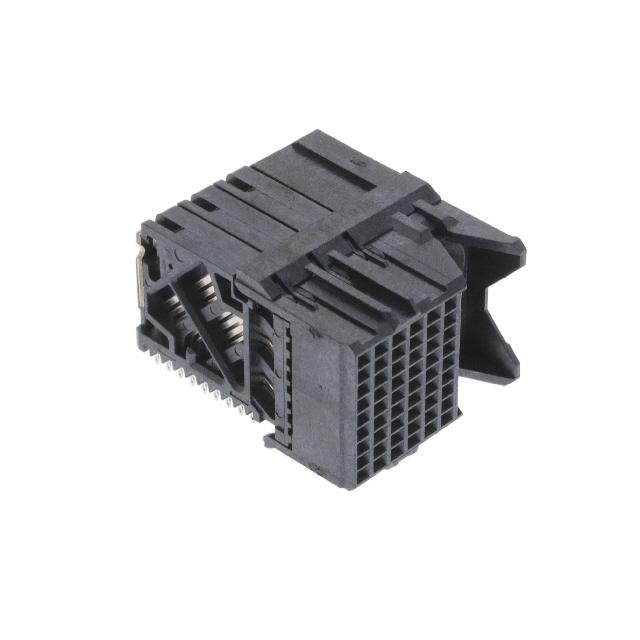

TE Connectivity AMP Connectors 2132499-1
Image shown is a representation only
Manufacturer
Manufacturer No
2132499-1
Packaging
Bulk
Description
IMP100S,R,RA3P6C,RG,39
Detailed Description
54 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Right
DataSheet
Color
Black
Pitch
0.075" (1.91mm)
Series
Impact
Features
Board Guide
Packaging
Bulk
Part Status
Active
Termination
Press-Fit
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
9
Connector Style
Impact, Guide Right
Connector Usage
Daughtercard
Number of Columns
6
Base Product Number
2132499
Number of Positions
54
Current Rating (Amps)
750mA
Operating Temperature
-55°C ~ 85°C
Contact Layout, Typical
36 Signal, 18 Ground
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.075" (1.91mm) |
| Series | Impact |
| Features | Board Guide |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 9 |
| Connector Style | Impact, Guide Right |
| Connector Usage | Daughtercard |
| Number of Columns | 6 |
| Base Product Number | 2132499 |
| Number of Positions | 54 |
| Current Rating (Amps) | 750mA |
| Operating Temperature | -55°C ~ 85°C |
| Contact Layout, Typical | 36 Signal, 18 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
