Step1: Product

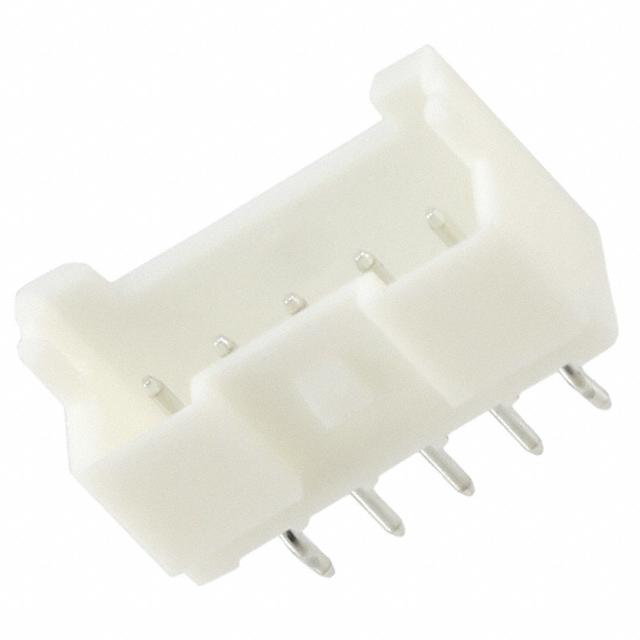

TE Connectivity AMP Connectors 2132415-5
Image shown is a representation only
Manufacturer
Manufacturer No
2132415-5
Quantity
7
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 5POS 2.5MM
Detailed Description
Connector Header Through Hole 5 position 0.098" (2.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Economy Power 2.5
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Last Time Buy
Termination
Kinked Pin, Solder
Applications
General Purpose, Industrial, Lighting
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.346" (8.80mm)
Base Product Number
2132415
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
5
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
4.2A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.141" (3.60mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Finish Thickness - Mating
80.0µin (2.03µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Economy Power 2.5 |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Last Time Buy |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.346" (8.80mm) |
| Base Product Number | 2132415 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 4.2A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.141" (3.60mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
