Step1: Product
TE Connectivity AMP Connectors 1982295-4

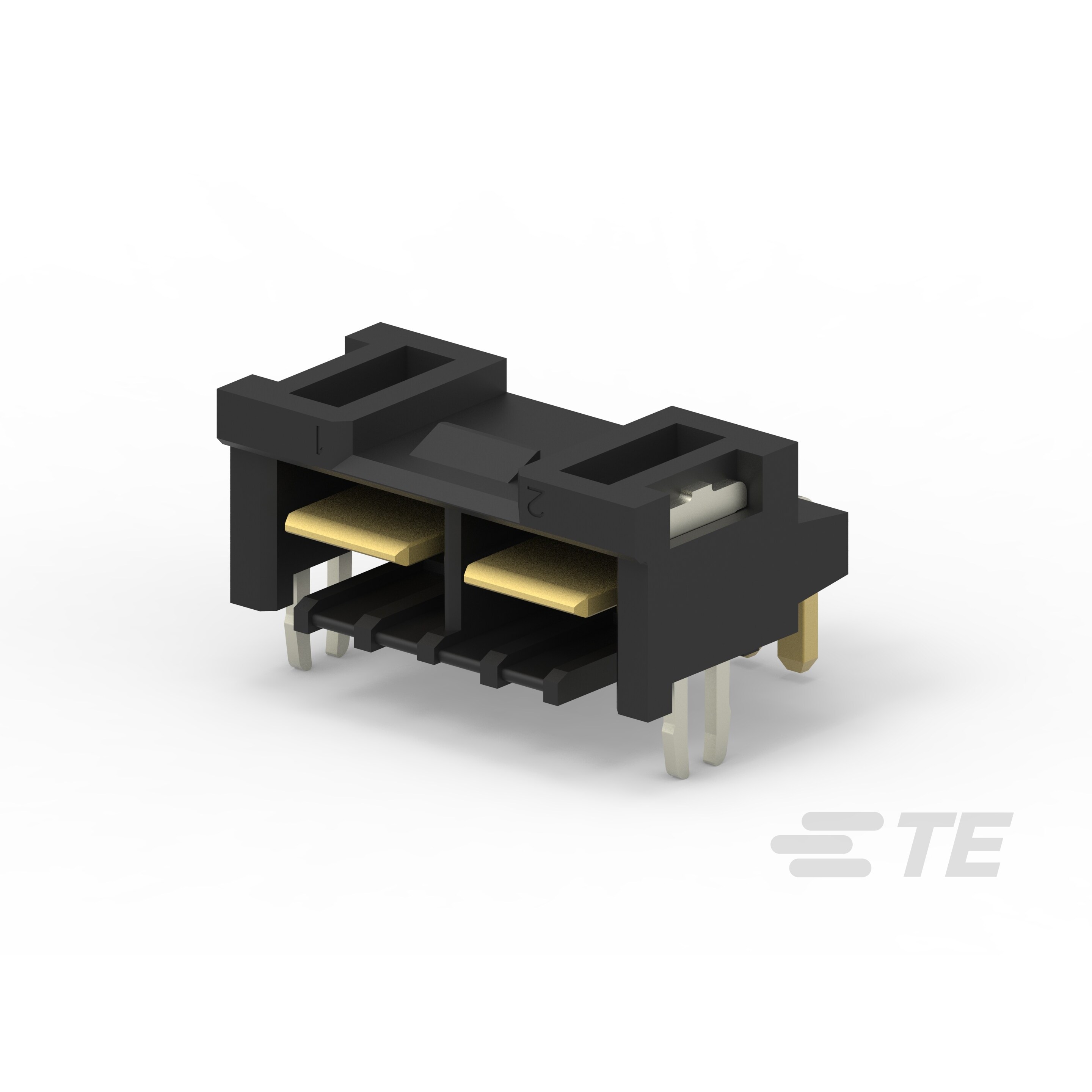

Image shown is a representation only
Manufacturer
Manufacturer No
1982295-4
Quantity
240
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
ELCON MINI 2P RA HEADER,GOLD,W/O
Detailed Description
2 Connector Header, Male Blades Through Hole, Right Angle Black
DataSheet
Color
Black
Pitch
0.307" (7.80mm)
Series
Elcon Mini
Features
Board Guide, Board Lock
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Male Blades
Contact Finish
Silver
Number of Rows
1
Voltage Rating
500V
Base Product Number
1982295
Number of Positions
2
Current Rating (Amps)
40A
Operating Temperature
-40°C ~ 125°C
Contact Layout, Typical
2 Power
Contact Finish Thickness
Flash
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.307" (7.80mm) |
| Series | Elcon Mini |
| Features | Board Guide, Board Lock |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Blades |
| Contact Finish | Silver |
| Number of Rows | 1 |
| Voltage Rating | 500V |
| Base Product Number | 1982295 |
| Number of Positions | 2 |
| Current Rating (Amps) | 40A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Layout, Typical | 2 Power |
| Contact Finish Thickness | Flash |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
