Step1: Product
TE Connectivity AMP Connectors 2081570-1

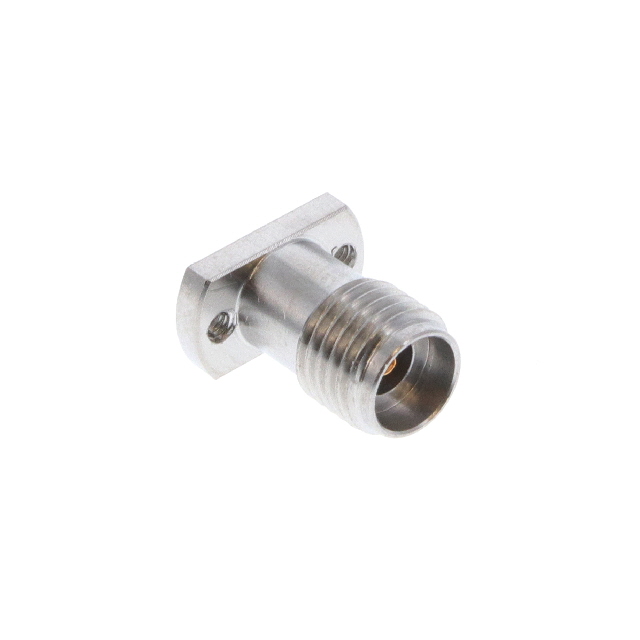

Image shown is a representation only
Manufacturer
Manufacturer No
2081570-1
Packaging
Box
Description
2.92MM JACK 2 HOLE FLANGE RECEPT
Detailed Description
2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Box
Part Status
Active
Body Material
Stainless Steel
Mating Cycles
500
Mounting Type
Surface Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
335 V
Connector Style
2.92mm
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Base Product Number
2081570
Contact Termination
Compression
Dielectric Material
Polyetherimide (PEI)
Operating Temperature
-55°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Box |
| Part Status | Active |
| Body Material | Stainless Steel |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 335 V |
| Connector Style | 2.92mm |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Base Product Number | 2081570 |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Operating Temperature | -55°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
