Step1: Product

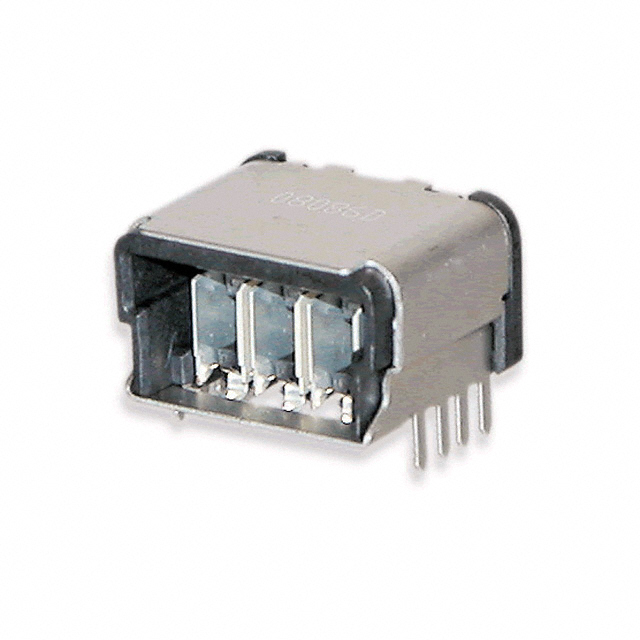

TE Connectivity AMP Connectors 2016032-1
Image shown is a representation only
Manufacturer
Manufacturer No
2016032-1
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN QSL RCPT R/A 50 OHM SMD
Detailed Description
QSL, Three Port Connector Receptacle, Non-Gendered 50 Ohms Surface Mount, Right Angle; Through Hole Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Finish
Tin
Cable Group
RG-174, 316
Part Status
Obsolete
Body Material
Steel
Housing Color
Black
Mating Cycles
500
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
Receptacle, Non-Gendered
Fastening Type
Push-Pull
Insertion Loss
0.4dB
Voltage Rating
270 V
Connector Style
QSL, Three Port
Frequency - Max
6 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
2016032
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Tin
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Finish | Tin |
| Cable Group | RG-174, 316 |
| Part Status | Obsolete |
| Body Material | Steel |
| Housing Color | Black |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | Receptacle, Non-Gendered |
| Fastening Type | Push-Pull |
| Insertion Loss | 0.4dB |
| Voltage Rating | 270 V |
| Connector Style | QSL, Three Port |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 2016032 |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Tin |
| Center Contact Material | Copper Alloy |
