Step1: Product

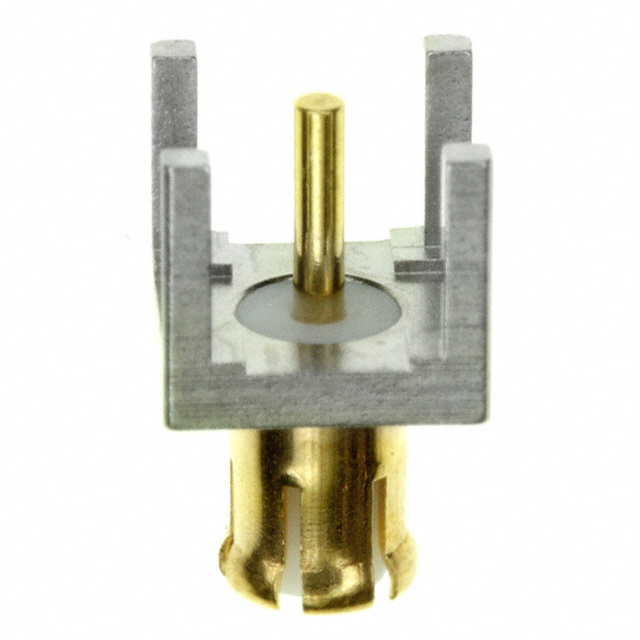

TE Connectivity AMP Connectors 1061015-1
Image shown is a representation only
Manufacturer
Manufacturer No
1061015-1
Quantity
6
Availability
In Stock
Packaging
Bulk
Description
CONN MCX RCPT STR 50 OHM PCB
Detailed Description
MCX Connector Receptacle, Male Pin 50 Ohms Through Hole Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Through Hole
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Insertion Loss
0.1dB
Voltage Rating
335 V
Connector Style
MCX
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Solder
Base Product Number
1061
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | 0.1dB |
| Voltage Rating | 335 V |
| Connector Style | MCX |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Base Product Number | 1061 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
