Step1: Product
TE Connectivity AMP Connectors 1057165-1

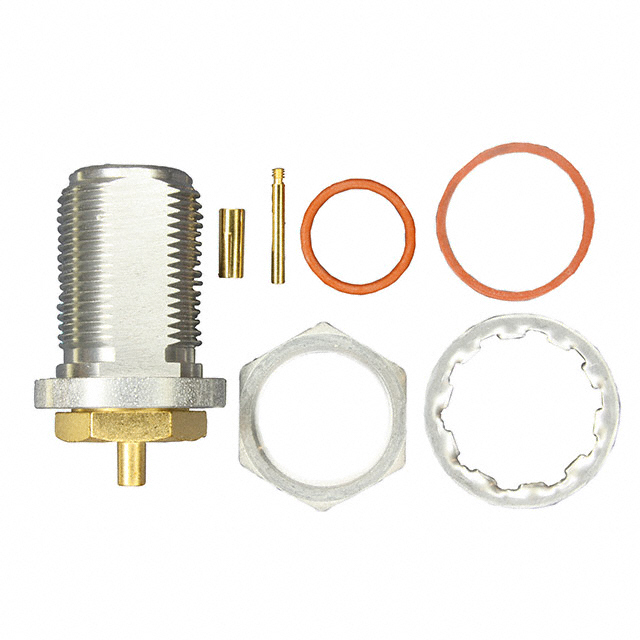

Image shown is a representation only
Manufacturer
Manufacturer No
1057165-1
Packaging
Bag
Description
CONN N JACK STR 50 OHM SOLDER
Detailed Description
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Includes
8 pcs - 1 Connector, 1 Clamp, 1 Contact, 2 Gaskets, 1 Insulator, 1 Lockwasher, 1 Nut
Impedance
50 Ohms
Packaging
Bag
Cable Group
RG-405 (.085" Semi Rigid)
Part Status
Obsolete
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Voltage Rating
335 V
Connector Style
N Type
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
1057
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 105°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Includes | 8 pcs - 1 Connector, 1 Clamp, 1 Contact, 2 Gaskets, 1 Insulator, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Part Status | Obsolete |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 335 V |
| Connector Style | N Type |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | 1057 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 105°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
