Step1: Product

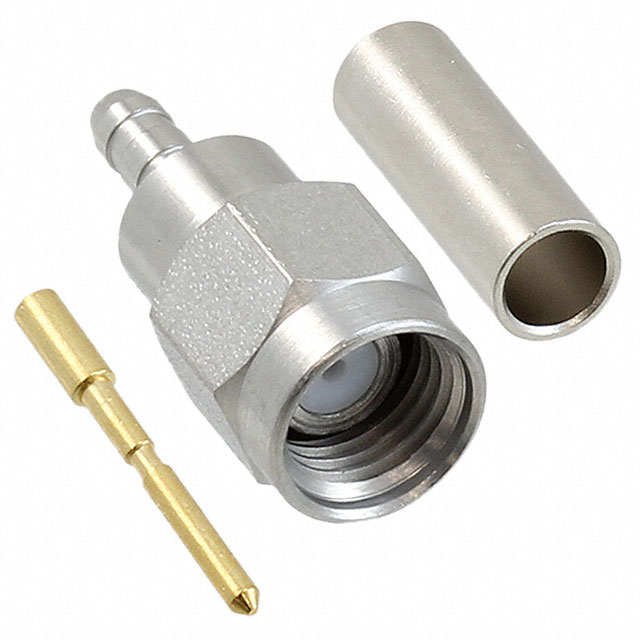

TE Connectivity AMP Connectors 1056436-1
Image shown is a representation only
Manufacturer
Manufacturer No
1056436-1
Packaging
Box
Description
CONN SMA PLUG STR 50 OHM SOLDER
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Impedance
50 Ohms
Packaging
Box
Cable Group
RD-316 Double Braid
Part Status
Obsolete
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Voltage Rating
250 V
Connector Style
SMA
Frequency - Max
12.4 GHz
Number of Ports
1
Shield Termination
Crimp
Base Product Number
1056436
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Impedance | 50 Ohms |
| Packaging | Box |
| Cable Group | RD-316 Double Braid |
| Part Status | Obsolete |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Voltage Rating | 250 V |
| Connector Style | SMA |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Base Product Number | 1056436 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
