Step1: Product

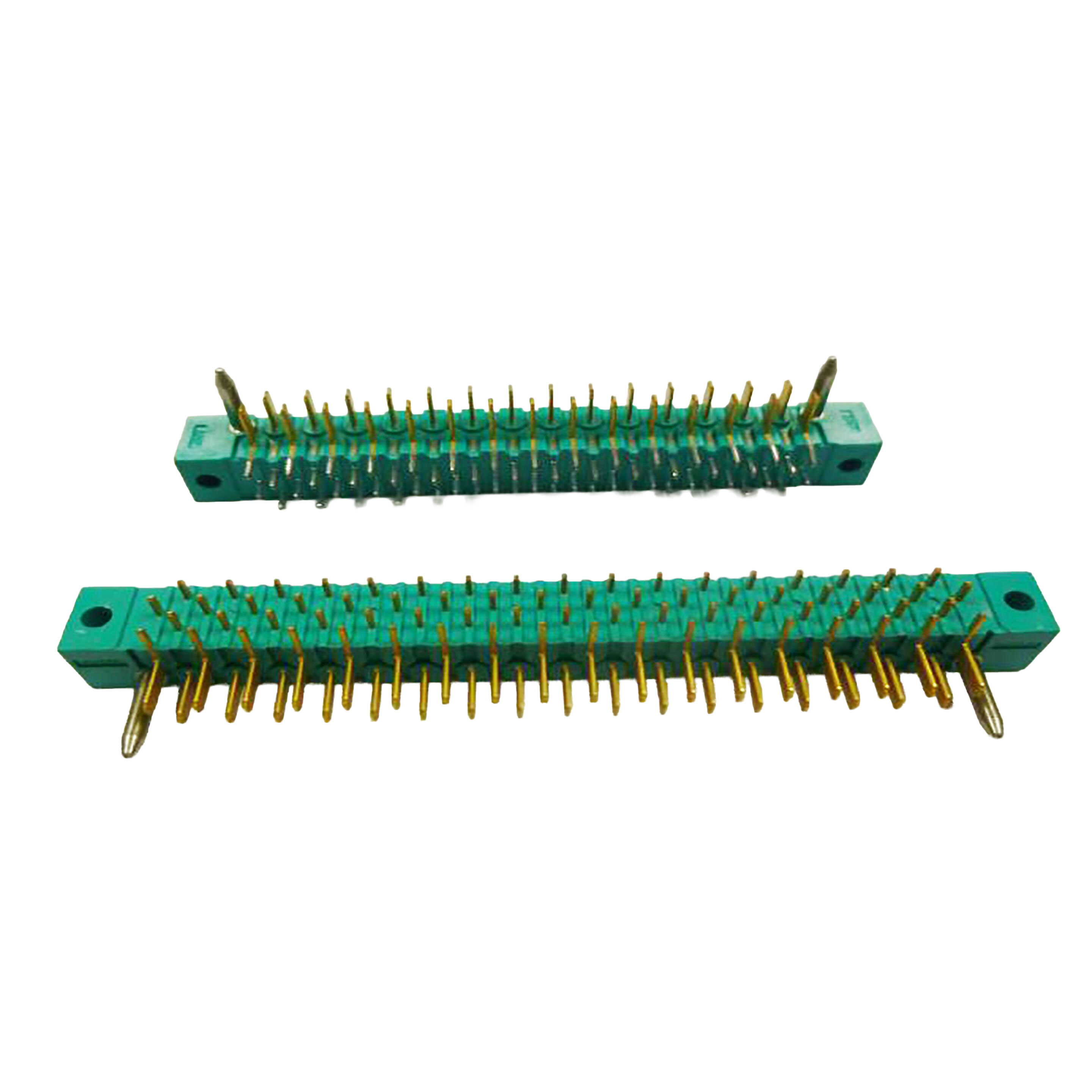

TE Connectivity Aerospace, Defense and Marine 3-582152-4
Image shown is a representation only
Manufacturer
Manufacturer No
3-582152-4
Packaging
Bulk
Description
CONN HEADER R/A 35POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 35 position 0.100" (2.54mm)
DataSheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board or Cable
Series
AMP-BLADE
Features
Mating Guide, Mounting Flange
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Gilding Metal
Insulation Color
Green
Insulation Height
0.415" (10.54mm)
Base Product Number
582152
Insulation Material
Diallyl Phthalate (DAP), Glass Filled
Number of Positions
35
Row Spacing - Mating
0.125" (3.18mm)
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
5A
Operating Temperature
-65°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board or Cable |
| Series | AMP-BLADE |
| Features | Mating Guide, Mounting Flange |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Gilding Metal |
| Insulation Color | Green |
| Insulation Height | 0.415" (10.54mm) |
| Base Product Number | 582152 |
| Insulation Material | Diallyl Phthalate (DAP), Glass Filled |
| Number of Positions | 35 |
| Row Spacing - Mating | 0.125" (3.18mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
