TE Connectivity Aerospace, Defense and Marine 2-530743-0

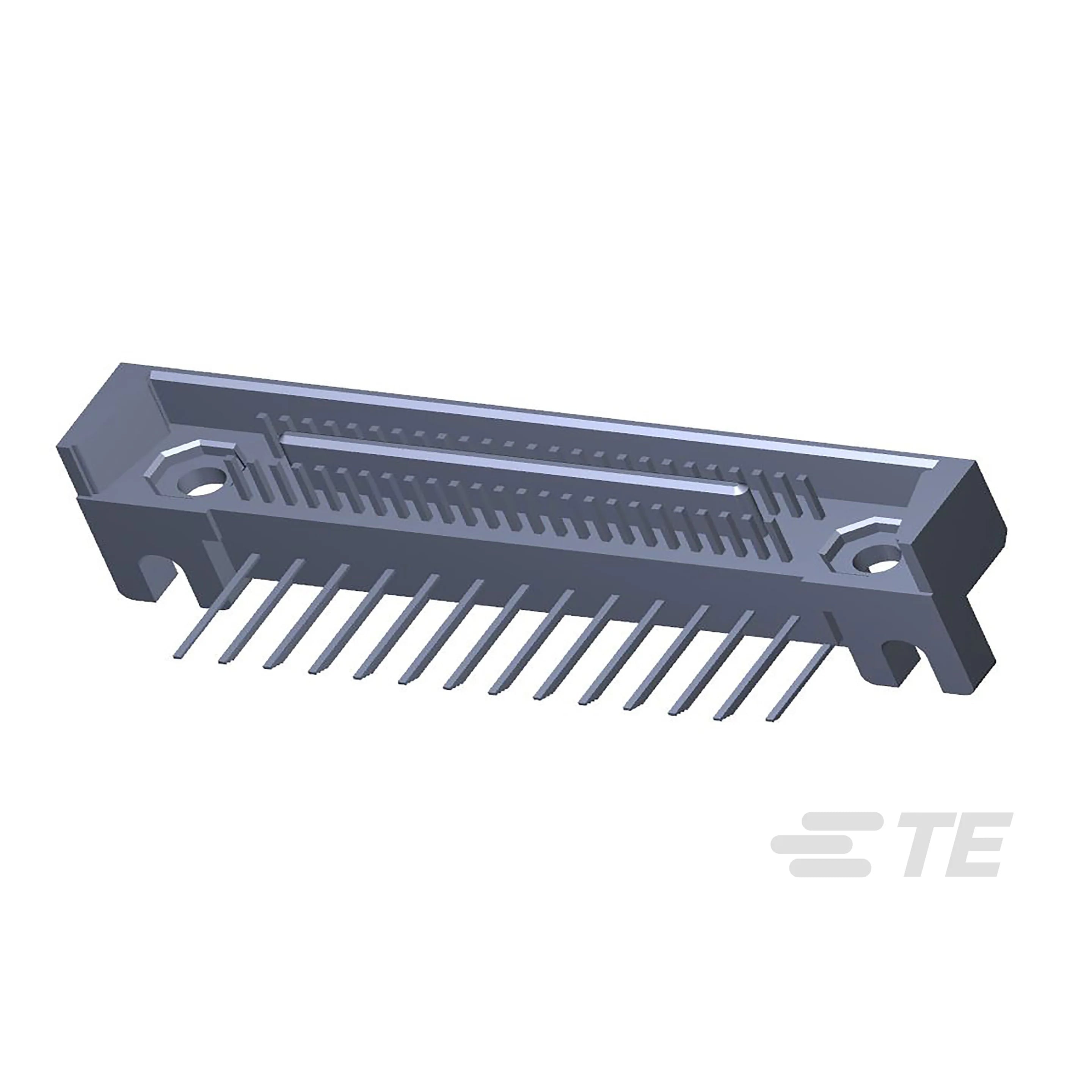

Image shown is a representation only
Manufacturer
Manufacturer No
2-530743-0
Packaging
Bulk
Description
CONN HEADER R/A 100P 1.27MM
Detailed Description
Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board or Cable
Series
Mini-Box
Features
Mating Guide, Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 3 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Insulation Color
Gray
Insulation Height
0.310" (7.87mm)
Base Product Number
530743
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
100
Row Spacing - Mating
0.150" (3.81mm)
Contact Finish - Post
Tin-Lead
Contact Finish - Mating
Gold
Contact Length - Mating
0.140" (3.56mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
120.0µin (3.05µm)
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board or Cable |
| Series | Mini-Box |
| Features | Mating Guide, Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Insulation Color | Gray |
| Insulation Height | 0.310" (7.87mm) |
| Base Product Number | 530743 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 100 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.140" (3.56mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
