Step1: Product
TE Connectivity Aerospace, Defense and Marine 2-531803-0

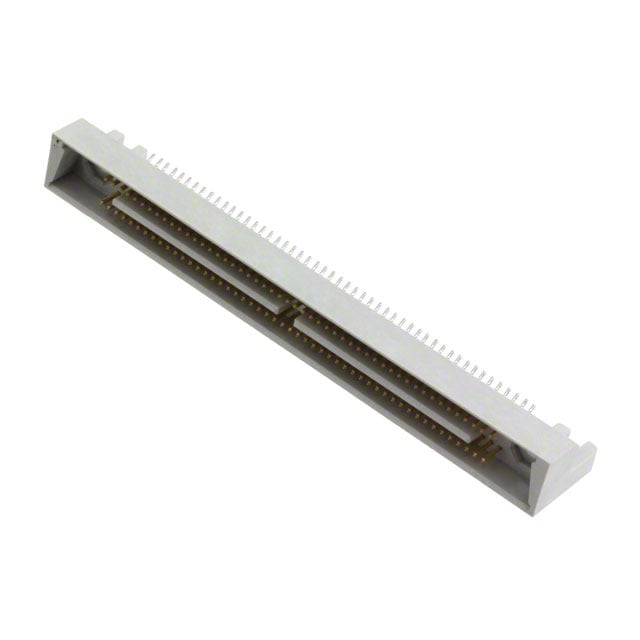

Image shown is a representation only
Manufacturer
Manufacturer No
2-531803-0
Packaging
Bulk
Description
CONN HEADER BRD EDGE 100P 1.27MM
Detailed Description
Connector Header Board Edge, Straddle Mount 100 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board or Cable
Series
Mini-Box
Features
Card Extender, Mating Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Board Edge, Straddle Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Insulation Color
Gray
Base Product Number
531803
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
100
Row Spacing - Mating
0.150" (3.81mm)
Contact Finish - Post
Tin-Lead
Contact Finish - Mating
Tin-Lead
Contact Length - Mating
0.140" (3.56mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board or Cable |
| Series | Mini-Box |
| Features | Card Extender, Mating Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Board Edge, Straddle Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Insulation Color | Gray |
| Base Product Number | 531803 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 100 |
| Row Spacing - Mating | 0.150" (3.81mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead |
| Contact Length - Mating | 0.140" (3.56mm) |
| Number of Positions Loaded | All |
