Step1: Product
TDK B59770B0120A070

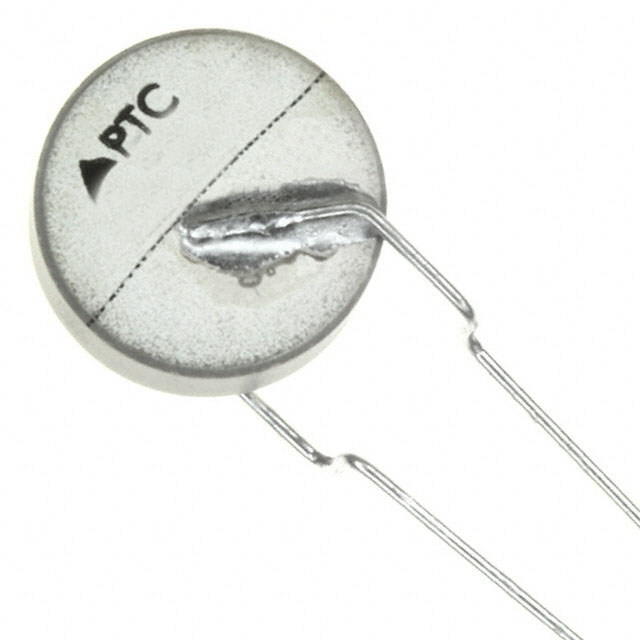

Image shown is a representation only
Manufacturer
Manufacturer No
B59770B0120A070
Package
Radial, Disc
Packaging
Bulk
Description
PTC RESET FUSE 420V RADIAL DISC
Detailed Description
Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Datasheet
Type
Ceramic
Series
B59770
Packaging
Bulk
Lead Spacing
0.197" (5.00mm)
Manufacturer
TDK
Time to Trip
4 s
Current - Max
1.4 A
Mounting Type
Through Hole
Voltage - Max
420V
Package / Case
Radial, Disc
Approval Agency
UL
Size / Dimension
0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Current - Trip (It)
127 mA
Height - Seated (Max)
0.197" (5.00mm)
Operating Temperature
0°C ~ 60°C
Resistance - 25°C (Typ)
70 Ohms
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Series | B59770 |
| Packaging | Bulk |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | TDK |
| Time to Trip | 4 s |
| Current - Max | 1.4 A |
| Mounting Type | Through Hole |
| Voltage - Max | 420V |
| Package / Case | Radial, Disc |
| Approval Agency | UL |
| Size / Dimension | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) |
| Current - Trip (It) | 127 mA |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Operating Temperature | 0°C ~ 60°C |
| Resistance - 25°C (Typ) | 70 Ohms |
