Step1: Product

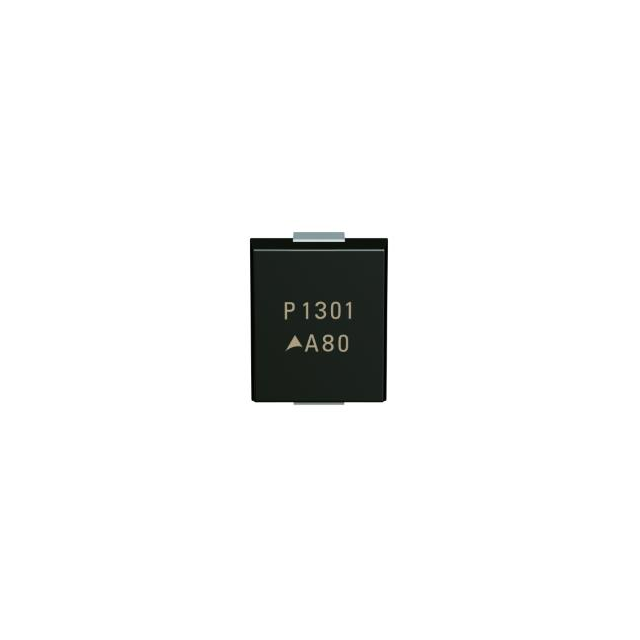

TDK B59301P1120A062
Image shown is a representation only
Manufacturer
Manufacturer No
B59301P1120A062
Quantity
1889
Availability
In Stock
Package
4032 (1080 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 24V 310MA 4032
Detailed Description
Ceramic PTC Resettable Fuse 24V 310 mA Ih Surface Mount 4032 (1080 Metric)
DataSheet
Type
Ceramic
Grade
Automotive
Series
B59301
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
TDK
Current - Max
1.6 A
Mounting Type
Surface Mount
Qualification
AEC-Q200
Voltage - Max
24V
Package / Case
4032 (1080 Metric)
Thickness (Max)
0.150" (3.80mm)
Size / Dimension
0.394" L x 0.315" W (10.00mm x 8.00mm)
Current - Trip (It)
640 mA
Operating Temperature
-40°C ~ 60°C
Resistance - 25°C (Typ)
3.1 Ohms
Current - Hold (Ih) (Max)
310 mA
Resistance - Initial (Ri) (Min)
1.85 Ohms
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Grade | Automotive |
| Series | B59301 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | TDK |
| Current - Max | 1.6 A |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Voltage - Max | 24V |
| Package / Case | 4032 (1080 Metric) |
| Thickness (Max) | 0.150" (3.80mm) |
| Size / Dimension | 0.394" L x 0.315" W (10.00mm x 8.00mm) |
| Current - Trip (It) | 640 mA |
| Operating Temperature | -40°C ~ 60°C |
| Resistance - 25°C (Typ) | 3.1 Ohms |
| Current - Hold (Ih) (Max) | 310 mA |
| Resistance - Initial (Ri) (Min) | 1.85 Ohms |
