Step1: Product
TDK B59707A0120A062

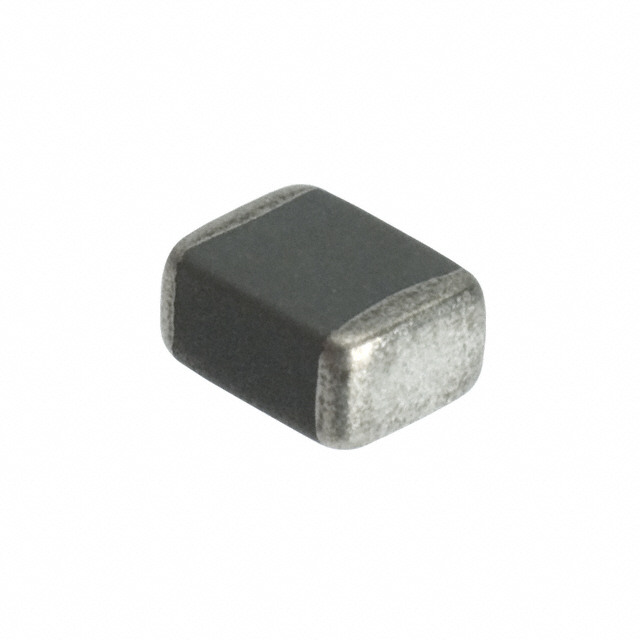

Image shown is a representation only
Manufacturer
Manufacturer No
B59707A0120A062
Quantity
5
Availability
In Stock
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 80V 50MA 1210
Detailed Description
Ceramic PTC Resettable Fuse 80V 50 mA Ih Surface Mount 1210 (3225 Metric)
DataSheet
Type
Ceramic
Grade
Automotive
Series
B59707
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
TDK
Current - Max
300 mA
Mounting Type
Surface Mount
Qualification
AEC-Q200
Voltage - Max
80V
Package / Case
1210 (3225 Metric)
Approval Agency
UR
Thickness (Max)
0.071" (1.80mm)
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Current - Trip (It)
90 mA
Operating Temperature
-20°C ~ 85°C
Resistance - 25°C (Typ)
125 Ohms
Current - Hold (Ih) (Max)
50 mA
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Grade | Automotive |
| Series | B59707 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | TDK |
| Current - Max | 300 mA |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Voltage - Max | 80V |
| Package / Case | 1210 (3225 Metric) |
| Approval Agency | UR |
| Thickness (Max) | 0.071" (1.80mm) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Current - Trip (It) | 90 mA |
| Operating Temperature | -20°C ~ 85°C |
| Resistance - 25°C (Typ) | 125 Ohms |
| Current - Hold (Ih) (Max) | 50 mA |
