Step1: Product
TDK B59115P1120A062

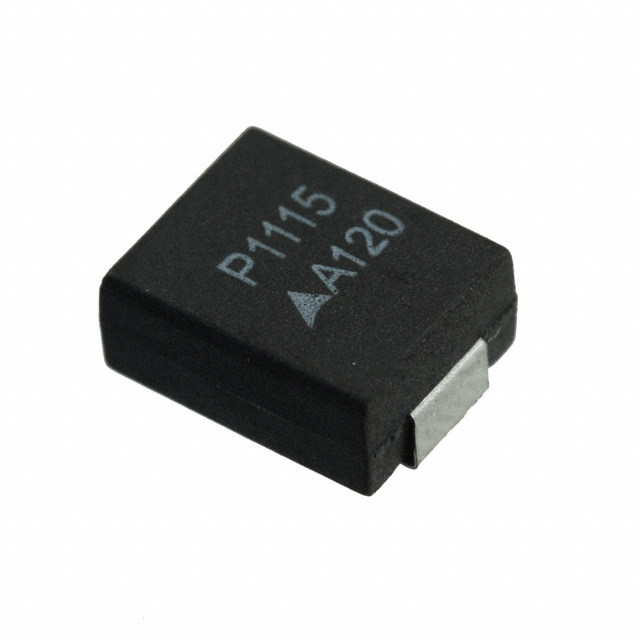

Image shown is a representation only
Manufacturer
Manufacturer No
B59115P1120A062
Package
3225 (8063 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 80V 70MA 3225
Detailed Description
Ceramic PTC Resettable Fuse 80V 70 mA Ih Surface Mount 3225 (8063 Metric)
DataSheet
Type
Ceramic
Grade
Automotive
Series
B59115
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
TDK
Current - Max
700 mA
Mounting Type
Surface Mount
Qualification
AEC-Q200
Voltage - Max
80V
Package / Case
3225 (8063 Metric)
Thickness (Max)
0.150" (3.80mm)
Size / Dimension
0.315" L x 0.248" W (8.00mm x 6.30mm)
Current - Trip (It)
145 mA
Operating Temperature
-40°C ~ 60°C
Resistance - 25°C (Typ)
55 Ohms
Current - Hold (Ih) (Max)
70 mA
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Grade | Automotive |
| Series | B59115 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | TDK |
| Current - Max | 700 mA |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Voltage - Max | 80V |
| Package / Case | 3225 (8063 Metric) |
| Thickness (Max) | 0.150" (3.80mm) |
| Size / Dimension | 0.315" L x 0.248" W (8.00mm x 6.30mm) |
| Current - Trip (It) | 145 mA |
| Operating Temperature | -40°C ~ 60°C |
| Resistance - 25°C (Typ) | 55 Ohms |
| Current - Hold (Ih) (Max) | 70 mA |
