Step1: Product

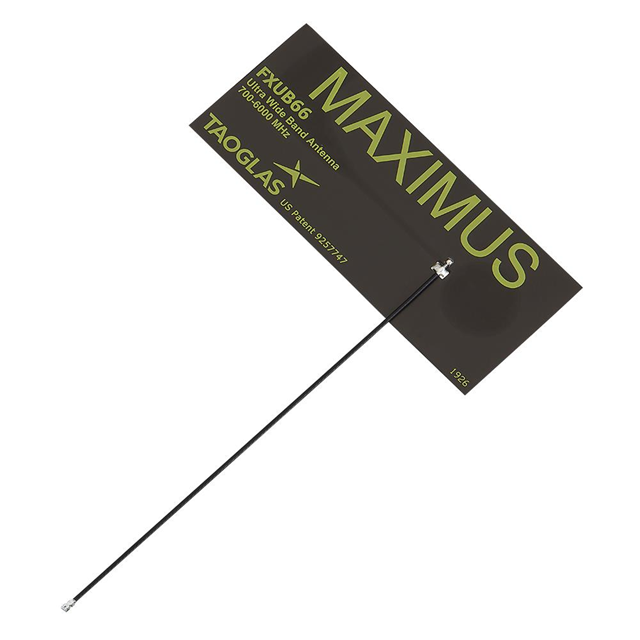

Taoglas Limited FXUB66.54.0150C
Image shown is a representation only
Manufacturer
Manufacturer No
FXUB66.54.0150C
Packaging
Bulk
Description
MAXIMUS ULTRA WIDE BAND FLEX ANT
Detailed Description
RF ANTENNA 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi Flat Patch I-PEX MHF4L Adhesive
DataSheet
Gain
0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi
VSWR
1.1, 2, 2.2, 3, 3.5
Series
Maximus
Features
Cable - 150mm
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Return Loss
-5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB
Termination
I-PEX MHF4L
Antenna Type
Flat Patch
Applications
2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi
Height (Max)
0.008" (0.20mm)
Manufacturer
Taoglas Limited
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz
Number of Bands
9
RF Family/Standard
Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band)
780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz
| Attribute | Value |
|---|---|
| Gain | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi |
| VSWR | 1.1, 2, 2.2, 3, 3.5 |
| Series | Maximus |
| Features | Cable - 150mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB |
| Termination | I-PEX MHF4L |
| Antenna Type | Flat Patch |
| Applications | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
| Height (Max) | 0.008" (0.20mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz |
| Number of Bands | 9 |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency (Center/Band) | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz |
