Step1: Product
Taoglas Limited FXUB63.07.0150C

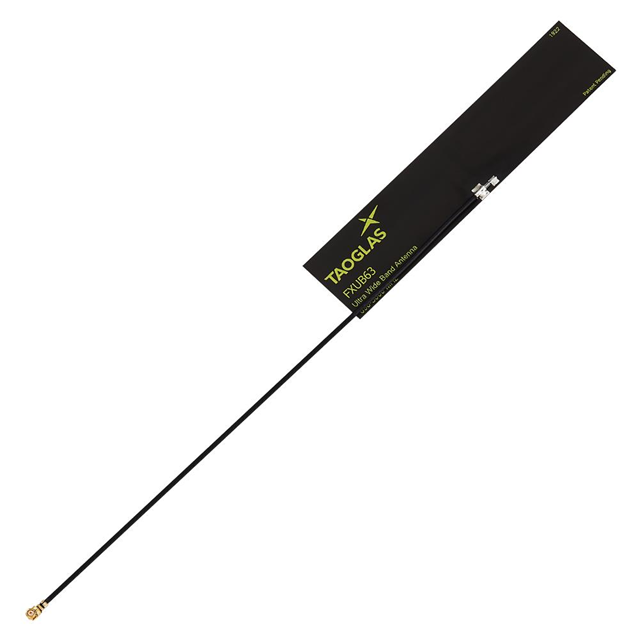

Image shown is a representation only
Manufacturer
Manufacturer No
FXUB63.07.0150C
Packaging
Bag
Description
RF ANT 850MHZ/1.575GHZ FLT PATCH
Detailed Description
RF ANTENNA GPS, ISM, LTE, Wi-Fi Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi
VSWR
2, 2, 1.8, 1.7, 1.7, 2.3
Features
Cable - 150mm
Packaging
Bag
Part Status
Active
Power - Max
5 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
GPS, ISM, LTE, Wi-Fi
Height (Max)
0.008" (0.20mm)
Manufacturer
Taoglas Limited
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
600MHz ~ 6GHz
Number of Bands
8
RF Family/Standard
AGPS, Cellular, General ISM, WiFi
Base Product Number
FXUB63
Frequency (Center/Band)
657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi |
| VSWR | 2, 2, 1.8, 1.7, 1.7, 2.3 |
| Features | Cable - 150mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | GPS, ISM, LTE, Wi-Fi |
| Height (Max) | 0.008" (0.20mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 600MHz ~ 6GHz |
| Number of Bands | 8 |
| RF Family/Standard | AGPS, Cellular, General ISM, WiFi |
| Base Product Number | FXUB63 |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz |
