Step1: Product

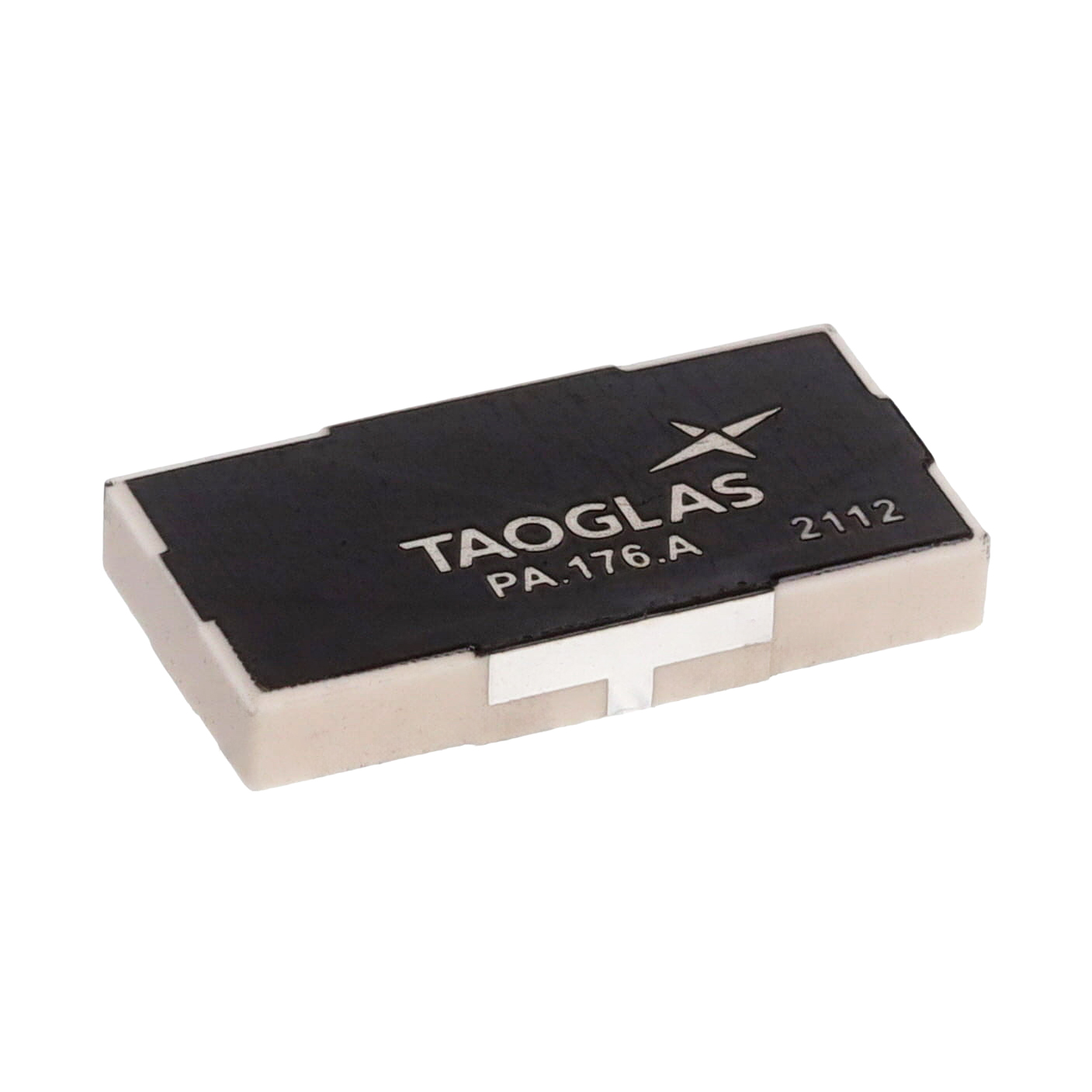

Taoglas Limited PA.176.A
Image shown is a representation only
Manufacturer
Manufacturer No
PA.176.A
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
ANT 5G/4G SUB 6 SMD 1700-6000MHZ
Detailed Description
RF ANTENNA 5G, HSPA, HSPA+, LTE, WCDMA Chip SMA Female Surface Mount
DataSheet
Gain
3dBi, 3.3dBi, 3.8dBi, 4.5dBi, 3.7dBi, 3.6dBi, 2.8dBi
VSWR
3
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
SMA Female
Antenna Type
Chip
Applications
5G, HSPA, HSPA+, LTE, WCDMA
Height (Max)
0.118" (3.00mm)
Manufacturer
Taoglas Limited
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.2GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz
Number of Bands
7
RF Family/Standard
Cellular
Base Product Number
PA.176
Frequency (Center/Band)
1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.5375GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 3.3dBi, 3.8dBi, 4.5dBi, 3.7dBi, 3.6dBi, 2.8dBi |
| VSWR | 3 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | SMA Female |
| Antenna Type | Chip |
| Applications | 5G, HSPA, HSPA+, LTE, WCDMA |
| Height (Max) | 0.118" (3.00mm) |
| Manufacturer | Taoglas Limited |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.2GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz |
| Number of Bands | 7 |
| RF Family/Standard | Cellular |
| Base Product Number | PA.176 |
| Frequency (Center/Band) | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.5375GHz |
