Step1: Product

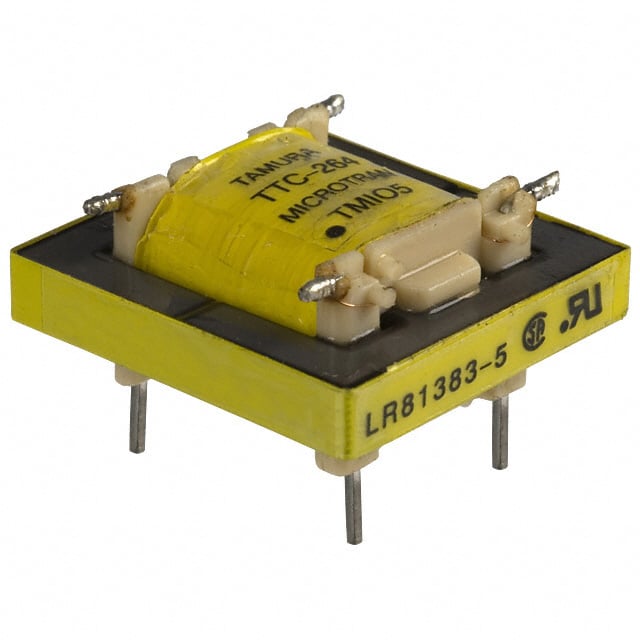

Tamura TTC-264
Image shown is a representation only
Manufacturer
Manufacturer No
TTC-264
Packaging
Bulk
Description
AUDIO XFMR 600 / 470 TH
Detailed Description
600 Impedance Primary Ohms 470 Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Through Hole
DataSheet
Series
TTC
Packaging
Bulk
Part Status
Active
Power Level
-20dB ~ 4dB
Manufacturer
Tamura
Mounting Type
Through Hole
Insertion Loss
2.5dB Max @ 1kHz
Approval Agency
CSA-C22.2 No. 66-M1988, UL1459
Frequency Range
300Hz ~ 3.5kHz
Size / Dimension
0.945" L x 0.906" W (24.00mm x 23.00mm)
Transformer Type
Data/Voice Coupling
Termination Style
PC Pin
Frequency Response
±1dB ~ ±4dB
Voltage - Isolation
1500VRMS @ 1 Minute
Height - Seated (Max)
0.472" (12.00mm)
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
470
DC Resistance (DCR) - Primary
108Ohm
DC Resistance (DCR) - Secondary
120Ohm
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Series | TTC |
| Packaging | Bulk |
| Part Status | Active |
| Power Level | -20dB ~ 4dB |
| Manufacturer | Tamura |
| Mounting Type | Through Hole |
| Insertion Loss | 2.5dB Max @ 1kHz |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1459 |
| Frequency Range | 300Hz ~ 3.5kHz |
| Size / Dimension | 0.945" L x 0.906" W (24.00mm x 23.00mm) |
| Transformer Type | Data/Voice Coupling |
| Termination Style | PC Pin |
| Frequency Response | ±1dB ~ ±4dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 470 |
| DC Resistance (DCR) - Primary | 108Ohm |
| DC Resistance (DCR) - Secondary | 120Ohm |
| Turns Ratio - Primary:Secondary | 1:1 |
