Taiwan Semiconductor Corporation TSM13ND50CI

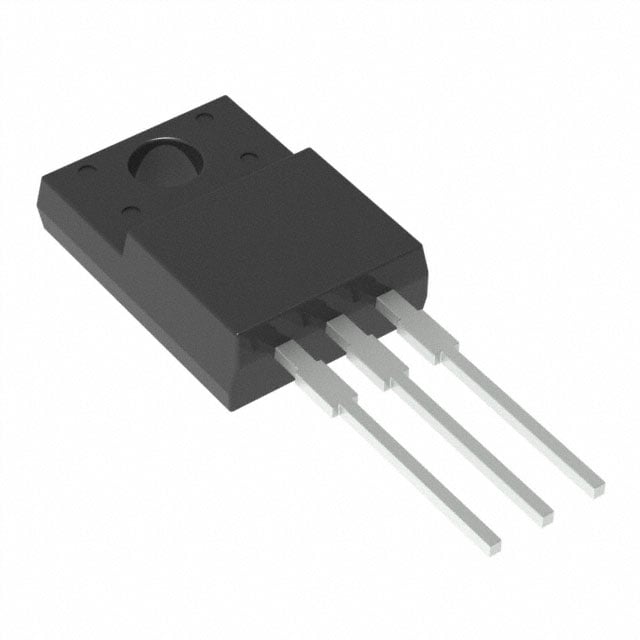

Image shown is a representation only
Manufacturer
Manufacturer No
TSM13ND50CI
Package
TO-220-3 Full Pack, Isolated Tab
Packaging
Tube
Description
MOSFET N-CH 500V 13A ITO220
Detailed Description
N-Channel 500 V 13A (Tc) 57W (Tc) Through Hole ITO-220
DataSheet
Mfr
Taiwan Semiconductor Corporation
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-220-3 Full Pack, Isolated Tab
Vgs(th) (Max) @ Id
3.8V @ 250µA
Base Product Number
TSM13
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
480mOhm @ 3.3A, 10V
Power Dissipation (Max)
57W (Tc)
Supplier Device Package
ITO-220
Gate Charge (Qg) (Max) @ Vgs
39 nC @ 10 V
Drain to Source Voltage (Vdss)
500 V
Input Capacitance (Ciss) (Max) @ Vds
1877 pF @ 50 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
13A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Taiwan Semiconductor Corporation |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Base Product Number | TSM13 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 480mOhm @ 3.3A, 10V |
| Power Dissipation (Max) | 57W (Tc) |
| Supplier Device Package | ITO-220 |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 500 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1877 pF @ 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
