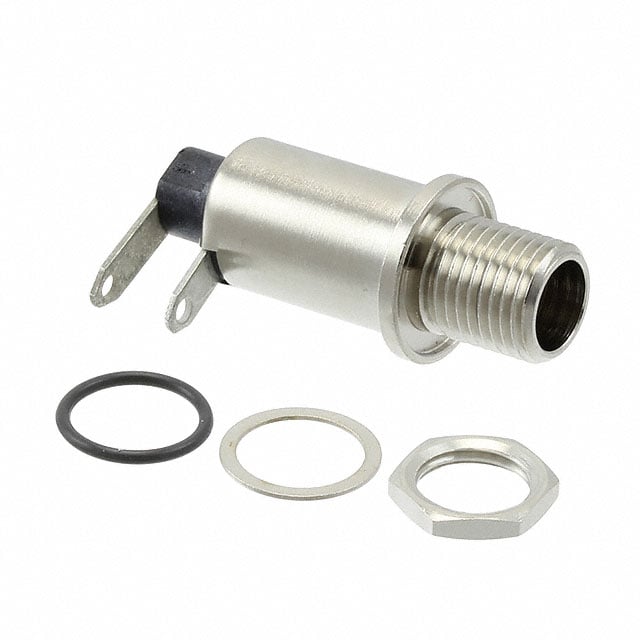

Switchcraft Inc. RAPC10U
Image shown is a representation only
Manufacturer
Manufacturer No
RAPC10U
Packaging
Bulk
Description
CONN POWER JACK SOLDER EYELET
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount
DataSheet
Gender
Male
Features
Mounting Hardware
Includes
4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Panel Mount
Connector Type
Jack
Actual Diameter
0.076" (1.93mm ID), 0.226" (5.75mm OD)
Voltage - Rated
24VAC/DC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Does Not Contain Switch
Base Product Number
RAPC10
Current Rating (Amps)
10 A
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware |
| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Panel Mount |
| Connector Type | Jack |
| Actual Diameter | 0.076" (1.93mm ID), 0.226" (5.75mm OD) |
| Voltage - Rated | 24VAC/DC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | RAPC10 |
| Current Rating (Amps) | 10 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
