Step1: Product

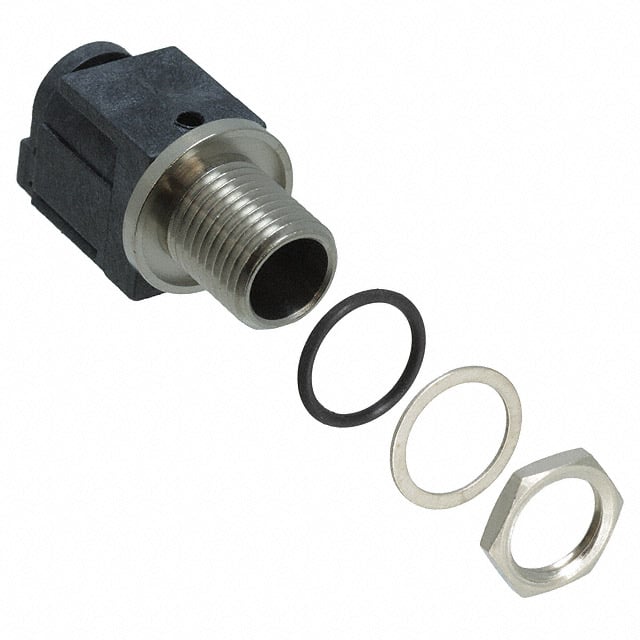

Switchcraft Inc. RAPC10S
Image shown is a representation only
Manufacturer
Manufacturer No
RAPC10S
Quantity
1
Availability
In Stock
Packaging
Bulk
Description
CONN POWER JACK SOLDER
Detailed Description
Power Barrel Connector Jack Through Hole, Right Angle
DataSheet
Gender
Male
Includes
4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.252" (6.40mm OD)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP68
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
RAPC10
Current Rating (Amps)
11 A
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
| Attribute | Value |
|---|---|
| Gender | Male |
| Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP68 |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | RAPC10 |
| Current Rating (Amps) | 11 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
