Step1: Product

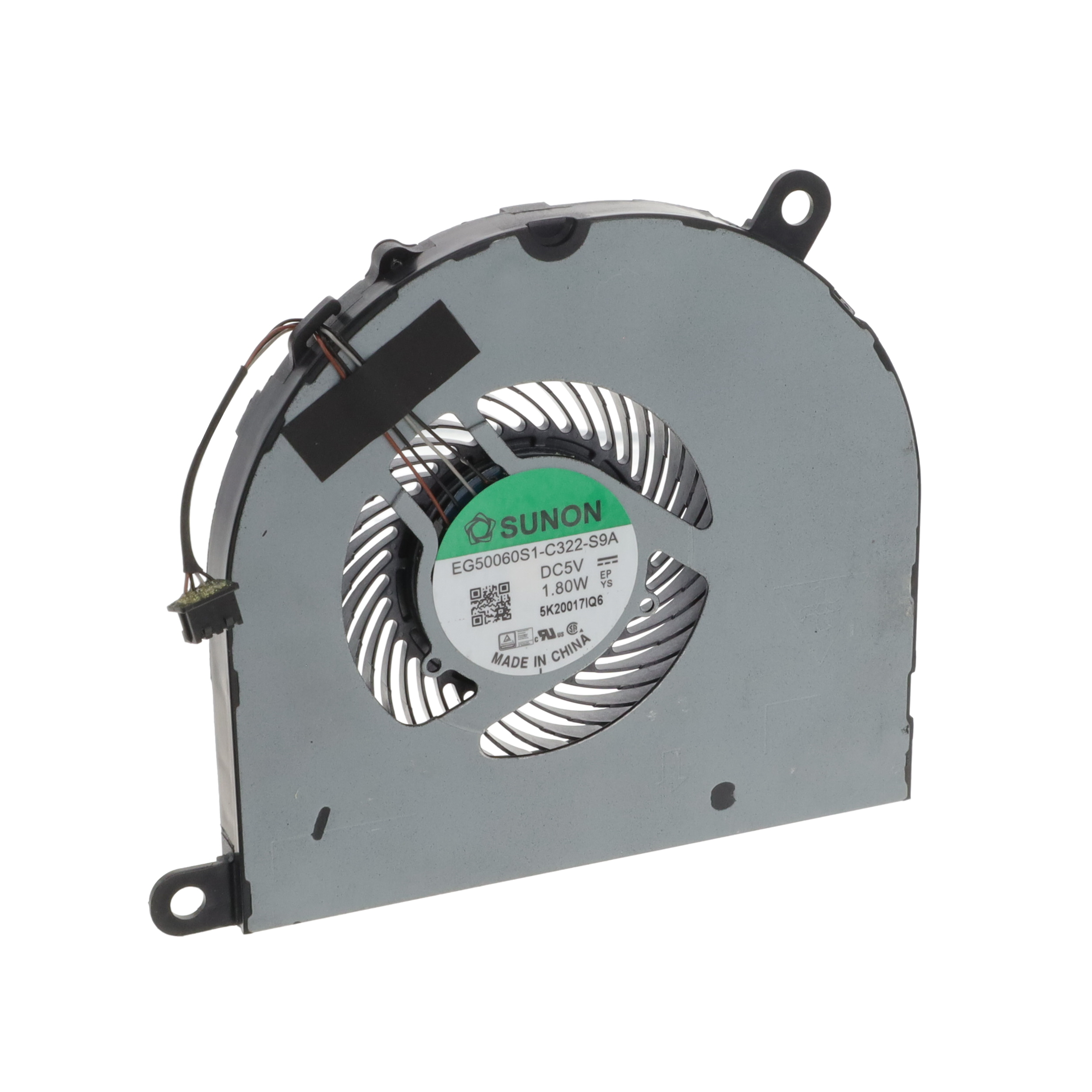

Sunon Fans 4558HQ/EG50060S1-C322-S9A
Image shown is a representation only
Manufacturer
Manufacturer No
4558HQ/EG50060S1-C322-S9A
Packaging
Box
Description
FAN BLOWER 84.8X8.8MM 5VDC RECT
Detailed Description
Fan Blower 5VDC Rectangular/Rounded - 84.8mm L x 71.9mm H Sleeve 5.9 CFM (0.165m³/min) 4 Position Rectangular Connector
DataSheet
Mfr
Sunon Fans
RPM
4800 RPM
Noise
44.2dB(A)
Width
8.80mm
Series
EG
Weight
0.091 lb (41.28 g)
Air Flow
5.9 CFM (0.165m³/min)
Fan Type
Blower
Features
Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging
Box
Part Status
Active
Termination
4 Position Rectangular Connector
Bearing Type
Sleeve
Power (Watts)
1.8 W
Voltage Range
2.5 ~ 5VDC
Approval Agency
CE, CSA, CUR, TUV, UL
Static Pressure
0.670 in H2O (166.9 Pa)
Voltage - Rated
5VDC
Lifetime @ Temp.
35000 Hrs @ 40°C
Material - Blade
Liquid Crystal Polymer (LCP)
Material - Frame
Steel, Polybutylene Terephthalate (PBT)
Size / Dimension
Rectangular/Rounded - 84.8mm L x 71.9mm H
Base Product Number
4558HQ
Current Rating (Amps)
0.360A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sunon Fans |
| RPM | 4800 RPM |
| Noise | 44.2dB(A) |
| Width | 8.80mm |
| Series | EG |
| Weight | 0.091 lb (41.28 g) |
| Air Flow | 5.9 CFM (0.165m³/min) |
| Fan Type | Blower |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Part Status | Active |
| Termination | 4 Position Rectangular Connector |
| Bearing Type | Sleeve |
| Power (Watts) | 1.8 W |
| Voltage Range | 2.5 ~ 5VDC |
| Approval Agency | CE, CSA, CUR, TUV, UL |
| Static Pressure | 0.670 in H2O (166.9 Pa) |
| Voltage - Rated | 5VDC |
| Lifetime @ Temp. | 35000 Hrs @ 40°C |
| Material - Blade | Liquid Crystal Polymer (LCP) |
| Material - Frame | Steel, Polybutylene Terephthalate (PBT) |
| Size / Dimension | Rectangular/Rounded - 84.8mm L x 71.9mm H |
| Base Product Number | 4558HQ |
| Current Rating (Amps) | 0.360A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
