Step1: Product
Sunon Fans 4556HQ/EG50040S1-C912-S9A

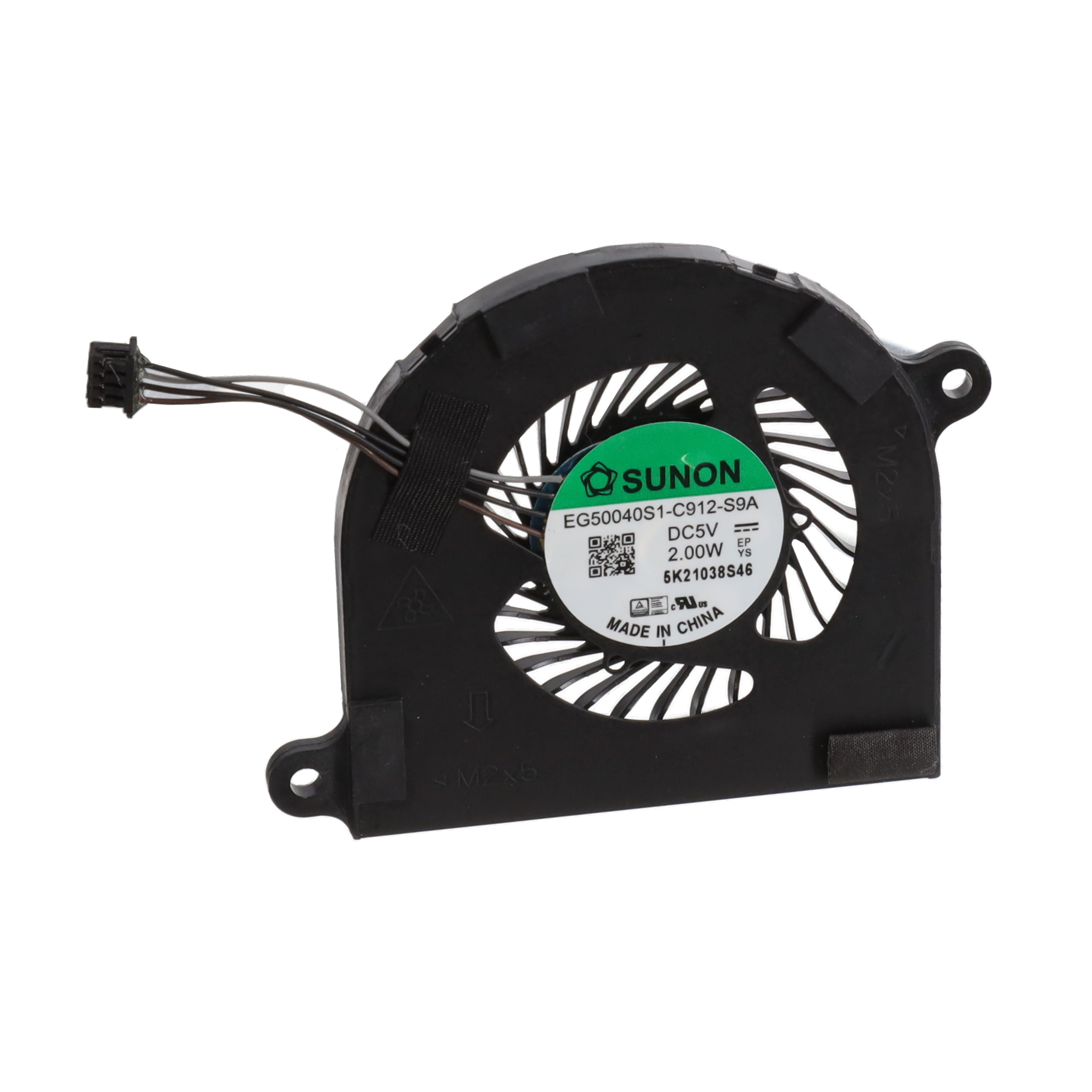

Image shown is a representation only
Manufacturer
Manufacturer No
4556HQ/EG50040S1-C912-S9A
Packaging
Box
Description
FAN BLOWER 67.5X4.6MM 5VDC RECT
Detailed Description
Fan Blower 5VDC Rectangular/Rounded - 67.5mm L x 54mm H Sleeve 2.6 CFM (0.073m³/min) 4 Position Rectangular Connector
Datasheet
Mfr
Sunon Fans
RPM
5100 RPM
Noise
33.4dB(A)
Width
4.60mm
Series
EG
Weight
0.029 lb (13.15 g)
Air Flow
2.6 CFM (0.073m³/min)
Fan Type
Blower
Features
Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Position Rectangular Connector
Bearing Type
Sleeve
Power (Watts)
2 W
Voltage Range
2.2 ~ 5VDC
Approval Agency
CE, CUR, TUV, UL
Static Pressure
0.680 in H2O (169.4 Pa)
Voltage - Rated
5VDC
Lifetime @ Temp.
35000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Steel, Polybutylene Terephthalate (PBT)
Size / Dimension
Rectangular/Rounded - 67.5mm L x 54mm H
Base Product Number
4556HQ
Current Rating (Amps)
0.400A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sunon Fans |
| RPM | 5100 RPM |
| Noise | 33.4dB(A) |
| Width | 4.60mm |
| Series | EG |
| Weight | 0.029 lb (13.15 g) |
| Air Flow | 2.6 CFM (0.073m³/min) |
| Fan Type | Blower |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Position Rectangular Connector |
| Bearing Type | Sleeve |
| Power (Watts) | 2 W |
| Voltage Range | 2.2 ~ 5VDC |
| Approval Agency | CE, CUR, TUV, UL |
| Static Pressure | 0.680 in H2O (169.4 Pa) |
| Voltage - Rated | 5VDC |
| Lifetime @ Temp. | 35000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Steel, Polybutylene Terephthalate (PBT) |
| Size / Dimension | Rectangular/Rounded - 67.5mm L x 54mm H |
| Base Product Number | 4556HQ |
| Current Rating (Amps) | 0.400A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
