Step1: Product

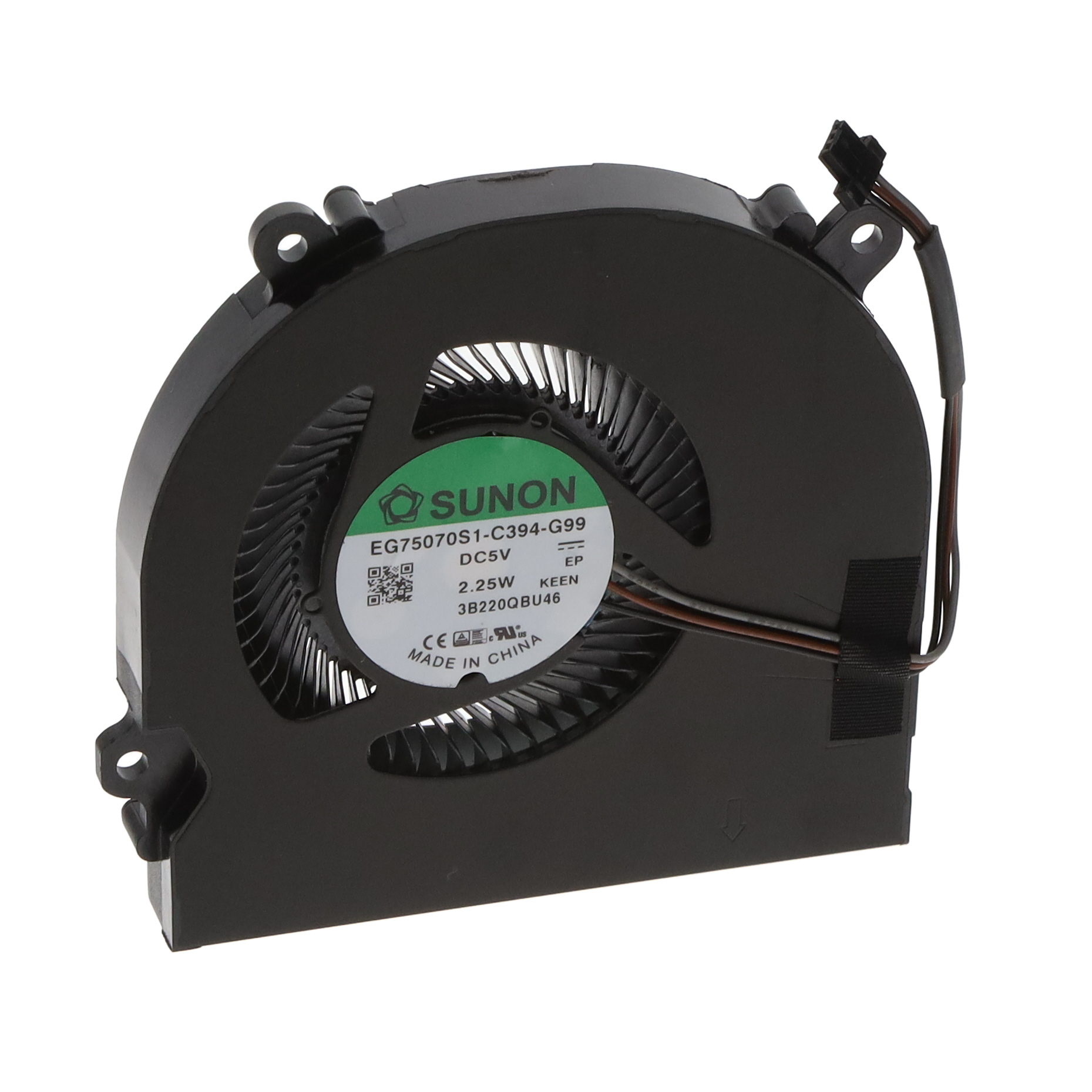

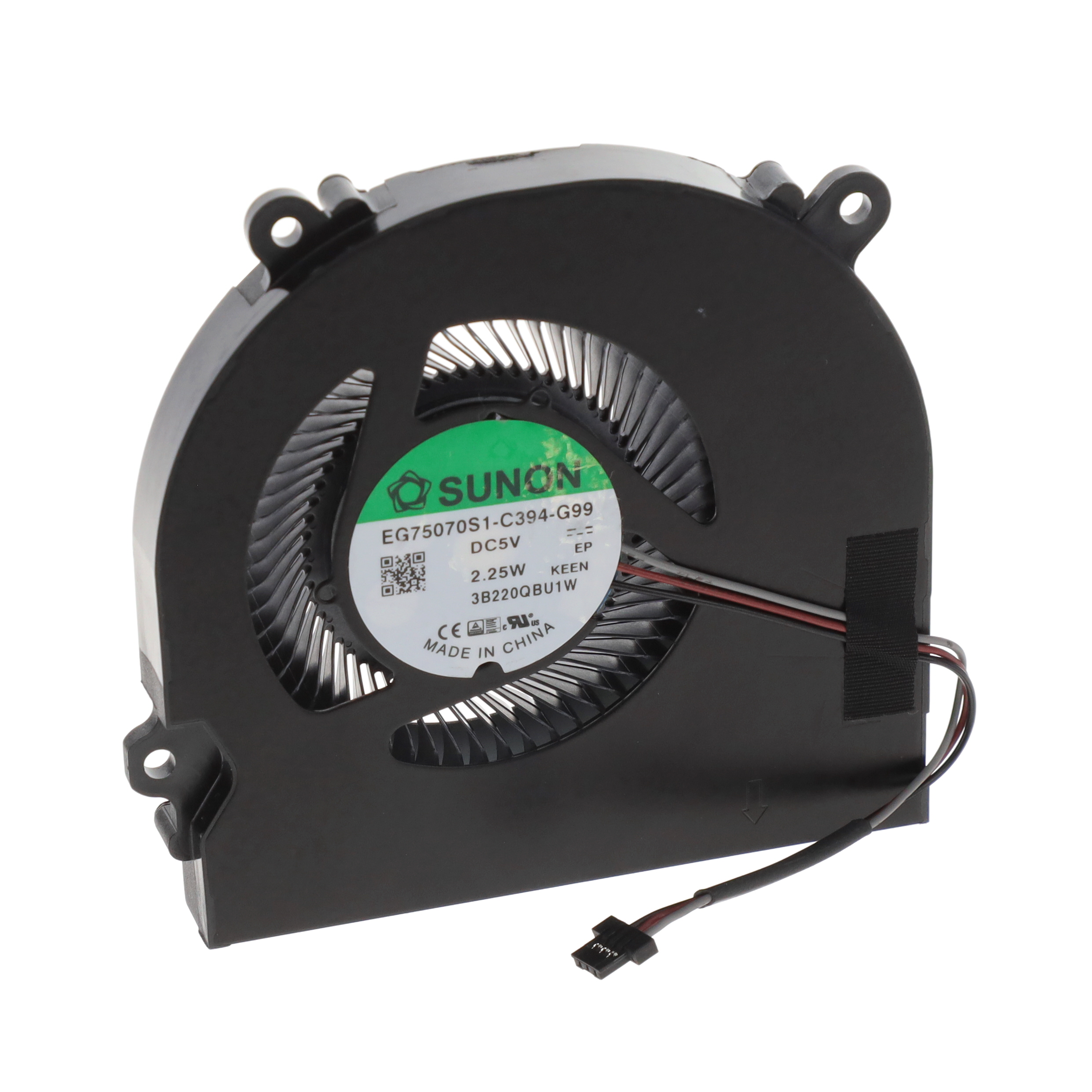

Sunon Fans 4553HQ/EG75070S1-C394-G99
Image shown is a representation only
Manufacturer
Manufacturer No
4553HQ/EG75070S1-C394-G99
Packaging
Box
Description
FAN BLOWER 78.36X9.5MM 5VDC RECT
Detailed Description
Fan Blower 5VDC Rectangular/Rounded - 78.36mm L x 73.2mm H Sleeve 8.5 CFM (0.238m³/min) 3 Position Rectangular Connector
Datasheet
Mfr
Sunon Fans
RPM
3700 RPM
Noise
40.3dB(A)
Width
9.50mm
Series
EG
Weight
0.104 lb (47.17 g)
Air Flow
8.5 CFM (0.238m³/min)
Fan Type
Blower
Features
Auto Restart, Speed Sensor (Tach)
Packaging
Box
Termination
3 Position Rectangular Connector
Bearing Type
Sleeve
Power (Watts)
1.8 W
Voltage Range
2.5 ~ 5.5VDC
Approval Agency
CE, CUR, TUV, UL
Static Pressure
0.710 in H2O (176.9 Pa)
Voltage - Rated
5VDC
Lifetime @ Temp.
35000 Hrs @ 40°C
Material - Blade
Liquid Crystal Polymer (LCP)
Material - Frame
Steel, Polybutylene Terephthalate (PBT)
Size / Dimension
Rectangular/Rounded - 78.36mm L x 73.2mm H
Base Product Number
4553HQ
Current Rating (Amps)
0.360A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sunon Fans |
| RPM | 3700 RPM |
| Noise | 40.3dB(A) |
| Width | 9.50mm |
| Series | EG |
| Weight | 0.104 lb (47.17 g) |
| Air Flow | 8.5 CFM (0.238m³/min) |
| Fan Type | Blower |
| Features | Auto Restart, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 3 Position Rectangular Connector |
| Bearing Type | Sleeve |
| Power (Watts) | 1.8 W |
| Voltage Range | 2.5 ~ 5.5VDC |
| Approval Agency | CE, CUR, TUV, UL |
| Static Pressure | 0.710 in H2O (176.9 Pa) |
| Voltage - Rated | 5VDC |
| Lifetime @ Temp. | 35000 Hrs @ 40°C |
| Material - Blade | Liquid Crystal Polymer (LCP) |
| Material - Frame | Steel, Polybutylene Terephthalate (PBT) |
| Size / Dimension | Rectangular/Rounded - 78.36mm L x 73.2mm H |
| Base Product Number | 4553HQ |
| Current Rating (Amps) | 0.360A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
