Step1: Product
SMC Diode Solutions SM060KJ1600G1

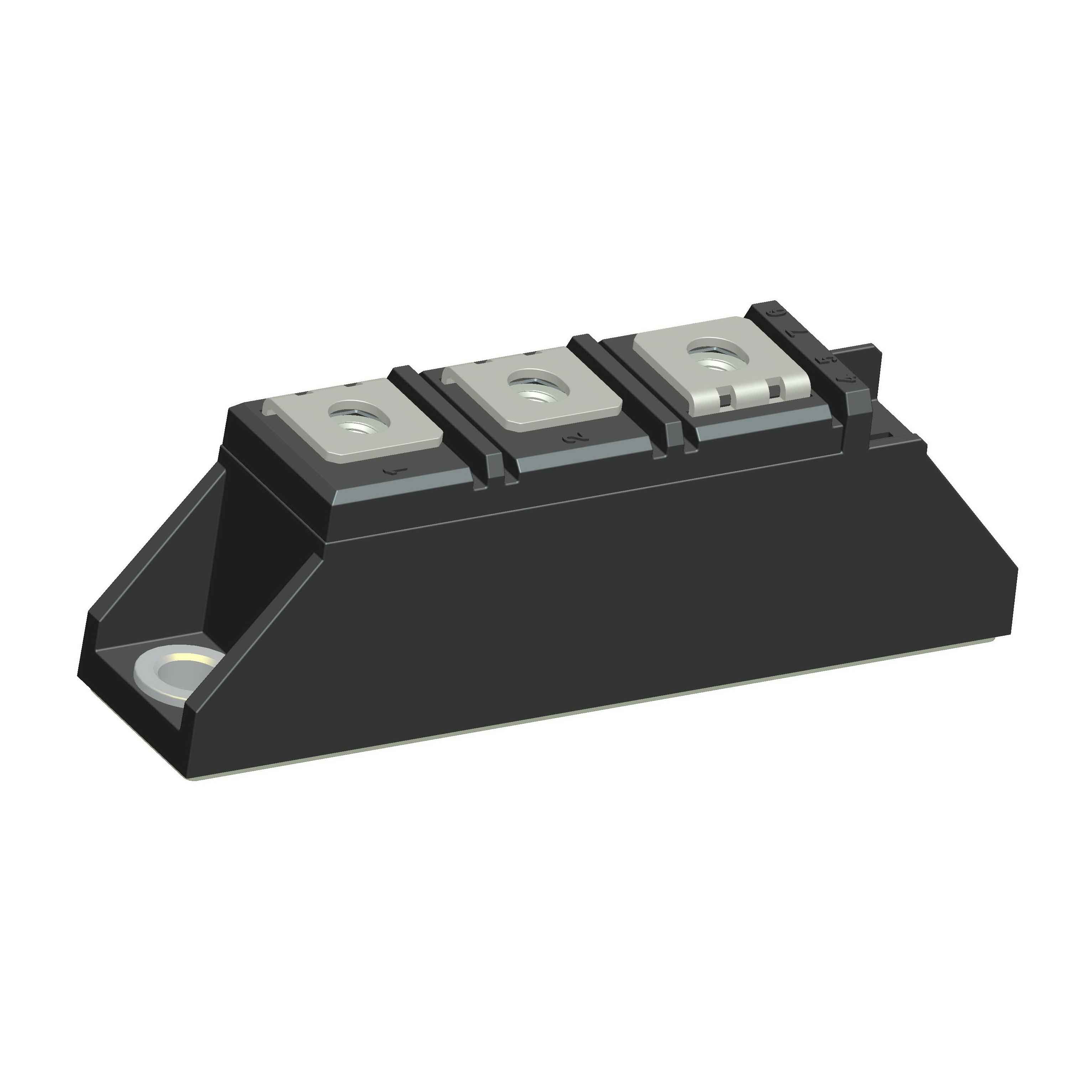

Image shown is a representation only
Manufacturer
Manufacturer No
SM060KJ1600G1
Package
Module
Packaging
Bulk
Description
DIODE MODULE GEN PURP 1600V 60A
Detailed Description
Diode Array 1 Pair Common Anode 1600 V 60A Chassis Mount Module
Datasheet
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Bulk
Technology
Standard
Manufacturer
SMC Diode Solutions
Mounting Type
Chassis Mount
Package / Case
Module
Diode Configuration
1 Pair Common Anode
Current - Reverse Leakage @ Vr
20 µA @ 1600 V
Voltage - DC Reverse (Vr) (Max)
1600 V
Operating Temperature - Junction
-40°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.05 V @ 100 A
Current - Average Rectified (Io) (per Diode)
60A
| Attribute | Value |
|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Standard |
| Manufacturer | SMC Diode Solutions |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Diode Configuration | 1 Pair Common Anode |
| Current - Reverse Leakage @ Vr | 20 µA @ 1600 V |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 100 A |
| Current - Average Rectified (Io) (per Diode) | 60A |
