Step1: Product

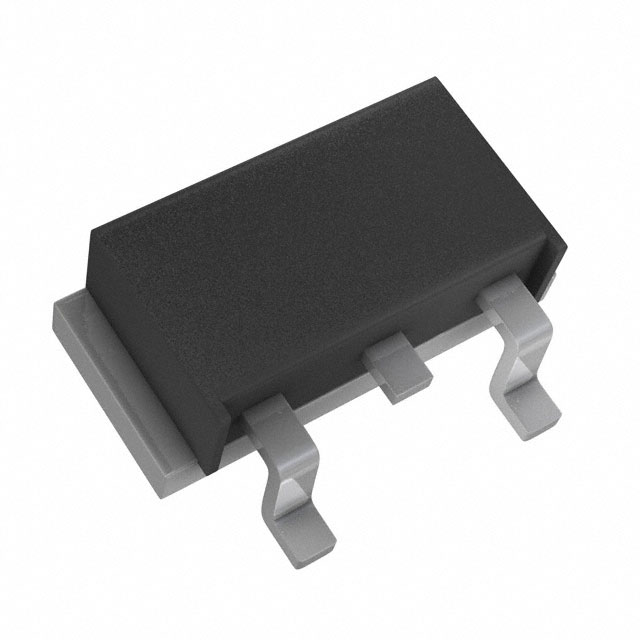

SMC Diode Solutions 113CNQ100SL
Image shown is a representation only
Manufacturer
Manufacturer No
113CNQ100SL
Package
PRM2-SL
Packaging
Box
Description
DIODE ARR SCHOTT 100V 55A PRM2SL
Detailed Description
Diode Array 1 Pair Common Cathode 100 V 55A Surface Mount PRM2-SL
Datasheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Box
Technology
Schottky
Manufacturer
SMC Diode Solutions
Mounting Type
Surface Mount
Package / Case
PRM2-SL
Base Product Number
113CNQ
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
PRM2-SL
Current - Reverse Leakage @ Vr
1 mA @ 100 V
Voltage - DC Reverse (Vr) (Max)
100 V
Operating Temperature - Junction
-55°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If
810 mV @ 55 A
Current - Average Rectified (Io) (per Diode)
55A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Box |
| Technology | Schottky |
| Manufacturer | SMC Diode Solutions |
| Mounting Type | Surface Mount |
| Package / Case | PRM2-SL |
| Base Product Number | 113CNQ |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | PRM2-SL |
| Current - Reverse Leakage @ Vr | 1 mA @ 100 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 810 mV @ 55 A |
| Current - Average Rectified (Io) (per Diode) | 55A |
