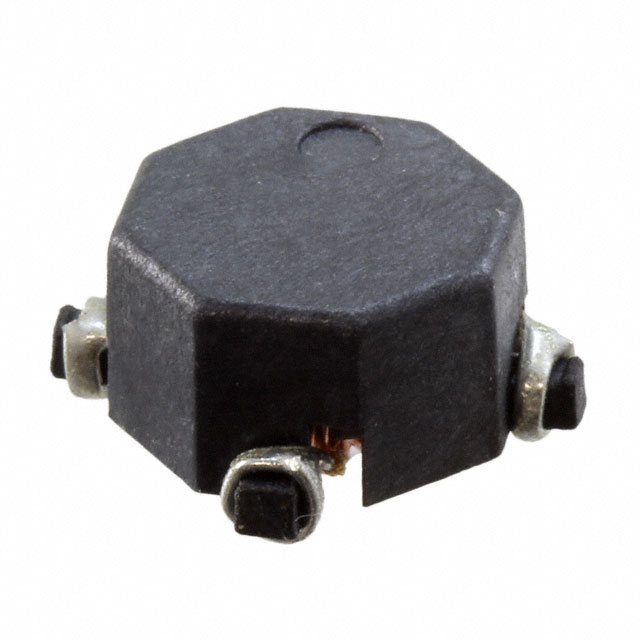

Signal Transformer SCX114-4R7
Image shown is a representation only
Manufacturer
Manufacturer No
SCX114-4R7
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
INDUCT ARRAY 2 COIL 4.7UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 18.8 µH Inductance - Connected in Series 4.7 µH Inductance - Connected in Parallel 41mOhm Max DC Resistance (DCR) - Parallel 2 A Nonstandard
DataSheet
Height
0.217" (5.50mm)
Series
SCX114
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Part Status
Obsolete
Manufacturer
Signal Transformer
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.461" L x 0.461" W (11.70mm x 11.70mm)
Current Rating - Series
1 A
Current Rating - Parallel
2 A
DC Resistance (DCR) - Series
161mOhm Max
DC Resistance (DCR) - Parallel
41mOhm Max
Inductance - Connected In Series
18.8 µH
Inductance - Connected In Parallel
4.7 µH
| Attribute | Value |
|---|---|
| Height | 0.217" (5.50mm) |
| Series | SCX114 |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Part Status | Obsolete |
| Manufacturer | Signal Transformer |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.461" L x 0.461" W (11.70mm x 11.70mm) |
| Current Rating - Series | 1 A |
| Current Rating - Parallel | 2 A |
| DC Resistance (DCR) - Series | 161mOhm Max |
| DC Resistance (DCR) - Parallel | 41mOhm Max |
| Inductance - Connected In Series | 18.8 µH |
| Inductance - Connected In Parallel | 4.7 µH |
