Signal Transformer CL-25-50

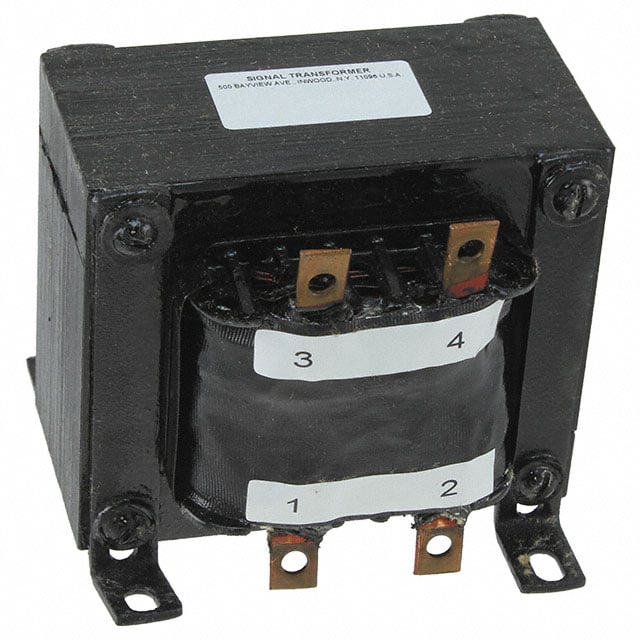

Image shown is a representation only
Manufacturer
Manufacturer No
CL-25-50
Package
Nonstandard
Packaging
Box
Description
INDUCT ARRAY 2COIL 300UH CHA MNT
Detailed Description
Unshielded 2 Coil Inductor Array 1.2 mH Inductance - Connected in Series 300 µH Inductance - Connected in Parallel 3mOhm DC Resistance (DCR) - Parallel 50 A Nonstandard
DataSheet
Height
3.374" (85.70mm)
Series
CL
Packaging
Box
Shielding
Unshielded
Part Status
Active
Manufacturer
Signal Transformer
Mounting Type
Chassis Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
3.870" L x 3.374" W (98.30mm x 85.70mm)
Current Rating - Series
25 A
Current Rating - Parallel
50 A
DC Resistance (DCR) - Series
12mOhm
DC Resistance (DCR) - Parallel
3mOhm
Inductance - Connected In Series
1.2 mH
Inductance - Connected In Parallel
300 µH
| Attribute | Value |
|---|---|
| Height | 3.374" (85.70mm) |
| Series | CL |
| Packaging | Box |
| Shielding | Unshielded |
| Part Status | Active |
| Manufacturer | Signal Transformer |
| Mounting Type | Chassis Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 3.870" L x 3.374" W (98.30mm x 85.70mm) |
| Current Rating - Series | 25 A |
| Current Rating - Parallel | 50 A |
| DC Resistance (DCR) - Series | 12mOhm |
| DC Resistance (DCR) - Parallel | 3mOhm |
| Inductance - Connected In Series | 1.2 mH |
| Inductance - Connected In Parallel | 300 µH |
