Step1: Product
Sevskiy GmbH AN240207-01H

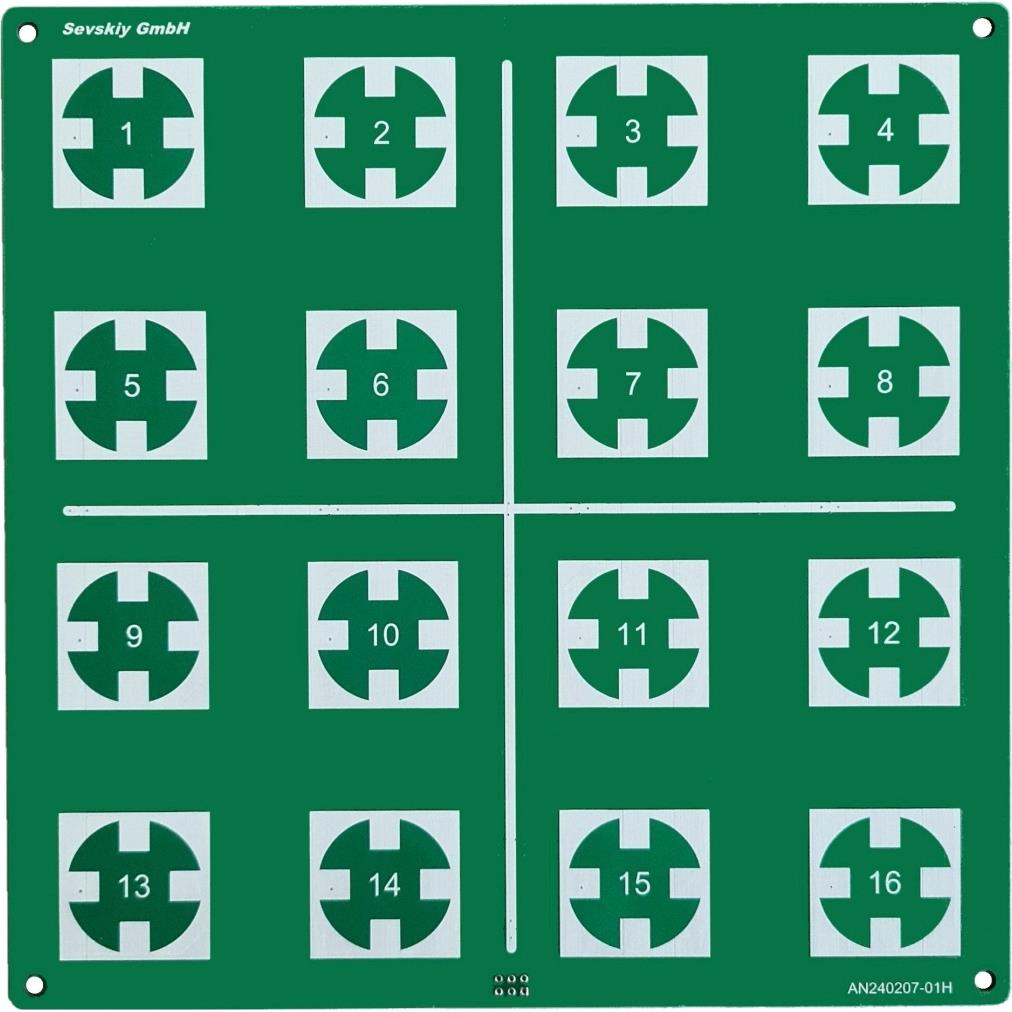

Image shown is a representation only
Manufacturer
Manufacturer No
AN240207-01H
Packaging
Bulk
Description
4x4 PATCH ARRAY RF ANT 2.45GHz
Detailed Description
RF ANTENNA Bluetooth LE 5.1/5.2, AoA Patch, 16-Element U.FL (UMCC), I-PEX MHF1 Screw Mount
DataSheet
Gain
0.7dBi
VSWR
1.43
Series
AN240207
Features
Cable - 150mm
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Return Loss
-15dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Patch, 16-Element
Applications
Bluetooth LE 5.1/5.2, AoA
Height (Max)
0.079" (2.00mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Screw Mount
Frequency Group
UHF (2GHz ~ 3GHz)
Frequency Range
2.4GHz ~ 2.5GHz
Number of Bands
1
RF Family/Standard
802.15.4, Bluetooth, WiFi
Frequency (Center/Band)
2.45GHz
| Attribute | Value |
|---|---|
| Gain | 0.7dBi |
| VSWR | 1.43 |
| Series | AN240207 |
| Features | Cable - 150mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -15dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Patch, 16-Element |
| Applications | Bluetooth LE 5.1/5.2, AoA |
| Height (Max) | 0.079" (2.00mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Screw Mount |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency (Center/Band) | 2.45GHz |
