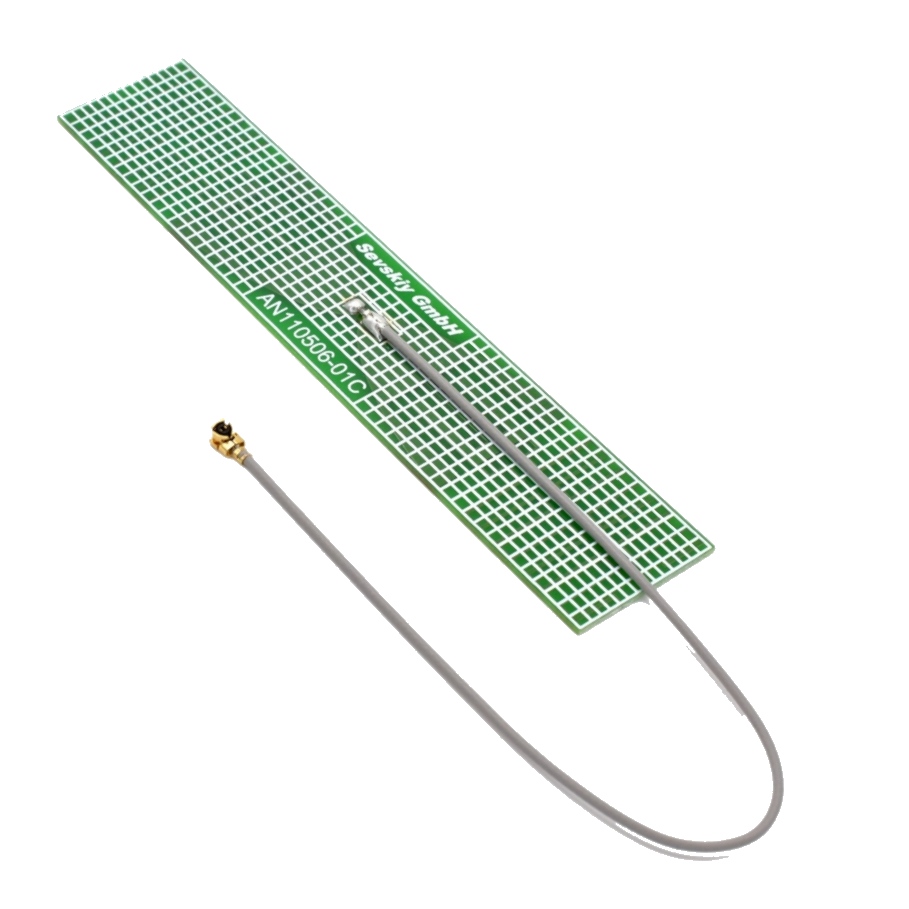

Sevskiy GmbH AN110506-01C-160-MHF1
Image shown is a representation only
Manufacturer
Manufacturer No
AN110506-01C-160-MHF1
Packaging
Bulk
Description
RF ANT ISM WiFi2.4/5 CBRS LTE 5G
Detailed Description
RF ANTENNA 5G, Bluetooth, ISM, LP-WAN, RFID, Smart Meters, WiFi PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
DataSheet
Gain
1dBi, 2.6dBi, 4dBi
VSWR
2.32, 2.62, 3.01
Series
AN110506
Features
Cable - 160mm
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Return Loss
-6dB, -7dB, -8dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
5G, Bluetooth, ISM, LP-WAN, RFID, Smart Meters, WiFi
Height (Max)
0.031" (0.80mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Adhesive, Bracket
Frequency Group
UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
791MHz ~ 928MHz, 2.3GHz ~ 2.495GHz, 5.15GHz ~ 5.925GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, Cellular, General ISM
Frequency (Center/Band)
859.5MHz, 2.3975GHz, 5.5375GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 2.6dBi, 4dBi |
| VSWR | 2.32, 2.62, 3.01 |
| Series | AN110506 |
| Features | Cable - 160mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Return Loss | -6dB, -7dB, -8dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | 5G, Bluetooth, ISM, LP-WAN, RFID, Smart Meters, WiFi |
| Height (Max) | 0.031" (0.80mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Adhesive, Bracket |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 791MHz ~ 928MHz, 2.3GHz ~ 2.495GHz, 5.15GHz ~ 5.925GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM |
| Frequency (Center/Band) | 859.5MHz, 2.3975GHz, 5.5375GHz |
