Step1: Product
SETsafe | SETfuse SCT520PT3.15A250V

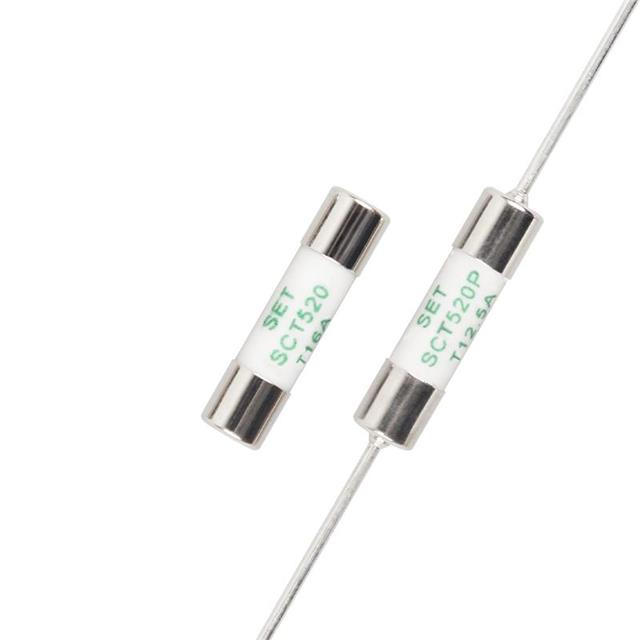

Image shown is a representation only
Manufacturer
Manufacturer No
SCT520PT3.15A250V
Package
5mm x 20mm (Axial)
Packaging
Bulk
Description
MINITURE FUSE
Detailed Description
3.15A 500 VAC 500 VDC Fuse Cartridge Through Hole
DataSheet
Series
SCF520P
Fuse Type
Cartridge
Packaging
Bulk
Part Status
Active
Applications
Electrical, Industrial
Manufacturer
SETsafe | SETfuse
Melting I²t
74.0
Mounting Type
Through Hole
Response Time
Slow Blow
Package / Case
5mm x 20mm (Axial)
Approval Agency
CQC, cURus
Size / Dimension
0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Voltage Rating - AC
500 VAC
Voltage Rating - DC
500 VDC
Current Rating (Amps)
3.15A
Breaking Capacity @ Rated Voltage
200A AC, 500A DC
| Attribute | Value |
|---|---|
| Series | SCF520P |
| Fuse Type | Cartridge |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Electrical, Industrial |
| Manufacturer | SETsafe | SETfuse |
| Melting I²t | 74.0 |
| Mounting Type | Through Hole |
| Response Time | Slow Blow |
| Package / Case | 5mm x 20mm (Axial) |
| Approval Agency | CQC, cURus |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Voltage Rating - AC | 500 VAC |
| Voltage Rating - DC | 500 VDC |
| Current Rating (Amps) | 3.15A |
| Breaking Capacity @ Rated Voltage | 200A AC, 500A DC |
