Step1: Product
SCT SCT52A40DSAR

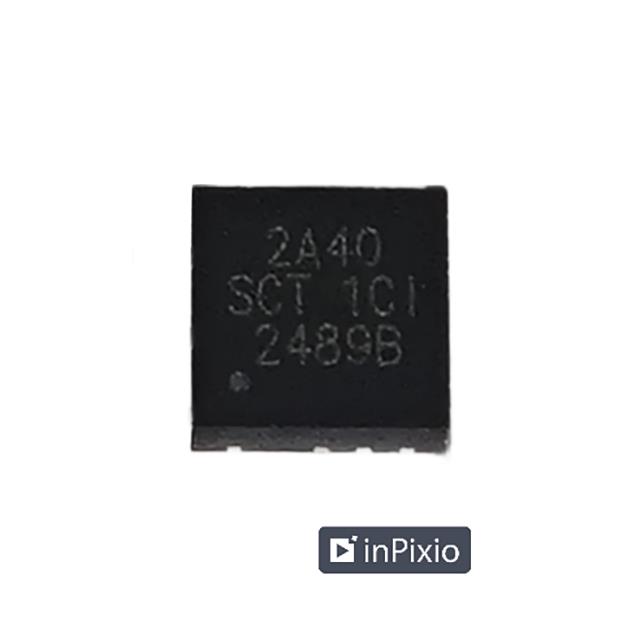

Image shown is a representation only
Manufacturer
Manufacturer No
SCT52A40DSAR
Package
9-VFDFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC GATE DRVR HALF-BRIDGE 9DFN
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 9-DFN (3x3)
DataSheet
Gate Type
MOSFET (N-Channel)
Packaging
Tape & Reel (TR)
Input Type
Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
SCT
Mounting Type
Surface Mount
Package / Case
9-VFDFN Exposed Pad
Voltage - Supply
8V ~ 24V
Number of Drivers
2
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 150°C (TJ)
Rise / Fall Time (Typ)
7ns, 4.5ns
Supplier Device Package
9-DFN (3x3)
High Side Voltage - Max (Bootstrap)
120 V
Current - Peak Output (Source, Sink)
4A, 4A
| Attribute | Value |
|---|---|
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | SCT |
| Mounting Type | Surface Mount |
| Package / Case | 9-VFDFN Exposed Pad |
| Voltage - Supply | 8V ~ 24V |
| Number of Drivers | 2 |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 7ns, 4.5ns |
| Supplier Device Package | 9-DFN (3x3) |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
